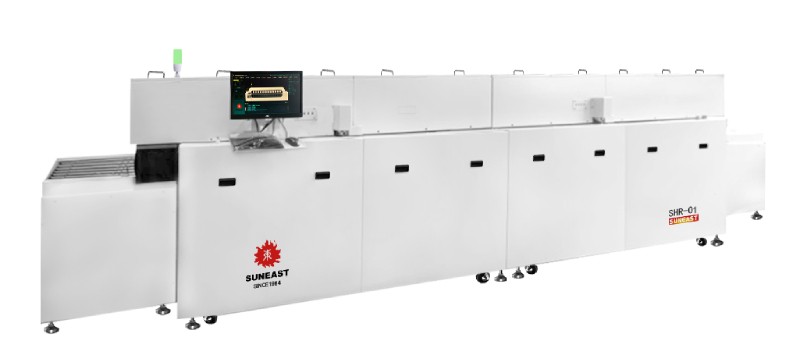

Suneast SHR-01B 隧道干燥炉

Dimension: L6566xW1420xH1685mm

Weight: Approx.1400kg

Power Supply: 3P5L 380V 50/60Hz

Control system: PC+PLC

Total Power: Approx.45KW

Conveying Type: Stainless steel customized supporting chain

Channels: 6 Channels

Product height (including fixture): L162*W68-82*H160mm

Infeed height: 900±20mm

Conveying Speed: 30-150mm/min

Speed control mode: Closed Ioop stepless speed regulation by inverter

Conveying direction: L-R(Option:R-L)

Temperature control mode: PID

Temperature range: Room temp~200℃

Heating system: Heating on the channel

Heating zones: 8 heating zones

Heating zone length: 4800mm

Cooling zone length: N/A (Option)

Warming up time: Approx.15min (Set temp 150℃)

Running power: Approx.6KW

Temperature value display accuracy: 1℃

Abnormal alarm: Three-color signal light+human-machine interface alarm

Exhaust requirement: 2-Φ150 air outlet,the exhaust air volume of a single air outlet is about 15m³/min

Parameter storage: Process Data and status stotage

Power cut protection: Equipped with UPS

Air source: N/A
