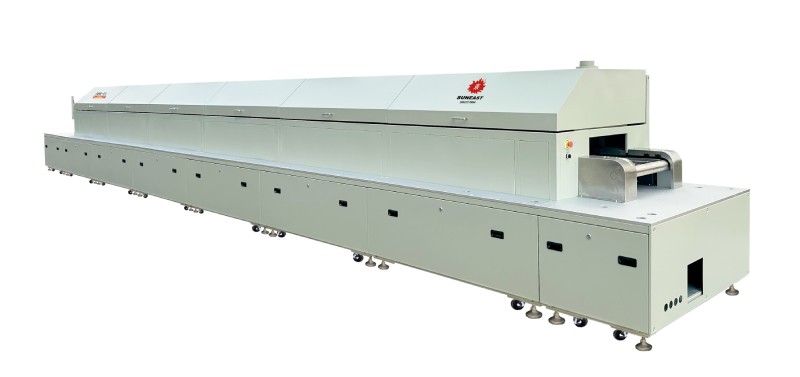

Suneast SHR-01L 隧道式烘箱 (Max 500mm)

Dimension:        L3600xW1300xH1685mm

Weight:        Approx.1400kg

Power Supply:        3P 5L 380V 50/60Hz

Control system:        PC+PLC

Total Power:        Approx.32KW

Conveying Type:        Force bone net

Conveying width:        Max 500mm

Product height (including fixture):        Max 100mm

Infeed height:        900±20mm

Conveying Speed:        100-500mm/min

Speed control mode:        Closed Ioop stepless speed regulation by inverter

Conveying direction:        L-R(Option:R-L)

Temperature control mode:        PID

Temperature range:        Room temp~200℃

Heating system:        Heating on the channel

Heating zones:        5 heating zones

Heating zone length:        3000mm

Cooling zone length:        N/A        (Option)

Warming up time:        Approx.15min        (Set temp 150℃)

Running power:        Approx.6KW

Temperature value display accuracy:        1℃

Abnormal alarm:        Three-color signal light+human-machine interface alarm

Exhaust requirement:        2-Φ150 air outlet,the exhaust air volume of a single air outlet is about 15m³/min

Parameter storage:        Process Data and status stotage

Power cut protection:        Equipped with UPS

Air source:        N/A

*1.Option:The front end and rear end of the machine can be extended, and the outer side of the protruding of the upper furnace is 300mm (the length of the whole machine will be lengthened 600mm).

**2.Note:According to production capacity requirements, the recommended heating zone number is: 4 heating zones, 5 heating zones, 8 heating zones, 9 heating zones, 10 heating zones, 12 heating zones, which can be customized.
