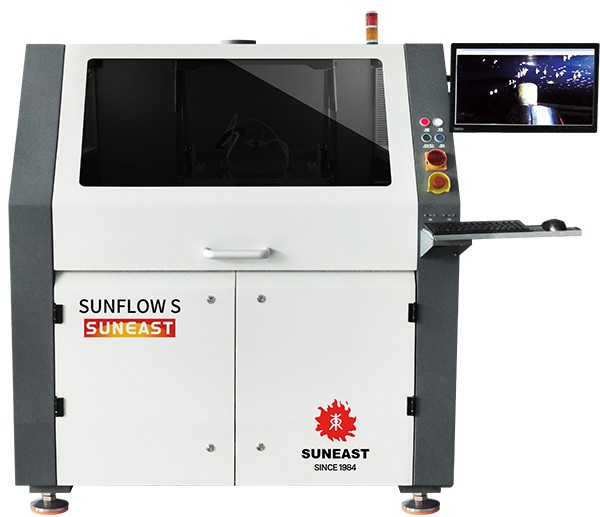

Suneast SUNFLOW S 独立选择性焊接机 (510x450x60mm)

- General technical data:

Overall dimension(mm) (Not include the keyboard, indicator light and monitor):  1435(L)*1800(W)*1670(H)

Equipment Weight(kg):  Approx.1050

Max PCB size(mm): 510(L)x450(W)

Min PCB size(mm): 120(L)x50(W)

PCB Top Side Clearance (mm):        120

PCB Bottom Side Clearance (mm):  60

PCB process edge (mm):        ≥3

Conveyor Height From Floor (mm):  900±20

PCB Conveying Speed (mm/s):        0.2-10

Max PCB Weight (kg):        ≤5

PCB Thickness With Jig (mm):        1-6

Conveyor Width Adjustment Range (mm):        50-450

Conveyor Width Adjustment Mode:        Electric

PCB Conveying Direction:        Left to right

Air Input Pressure (Mpa):        0.6

Nitrogen Supply:        Offered by customer

Nitrogen Input Pressure (Mpa):        0.6

Nitrogen Consumption (m³/h):        1.5

Required Purity of Nitrogen (%):        ≥99.999

Supply Voltage (VAC):        380

Voltage Tolerance Range(%): 6-10

Frequency (HZ):        50/60

Max Power Consumption (kw):          <11

Max Current (A):          <20

Ambient Temperature (℃):        10-35

Machine Noise Leve (dB): <65

Communication Interface:        SMEMA

Soldering System

Max.Soldering distance of Xaxis(mm):  510

Max.Soldering distance of Y axis(mm): 450

Max.Soldering distance of Z axis(mm):  60

Nozzle outer diameter(mm): 5、6、8、9、10、12、14

Nozzle inner diameter (mm): 2.4、3、4、5、6、8、10

Max soldering wave height(mm):  5

Solder pot capacity (kg)

Approx.13kg(Sn63Pb)/solder pot

Approx.12kg(lead-free)/solder pot

Max soldering temperature(℃): 330

Soldering heating power (kw): 1.15

Preheating System

Preheat temperature range(℃):  <200

Heating power (kw): 5

Heating mode: Hot air
