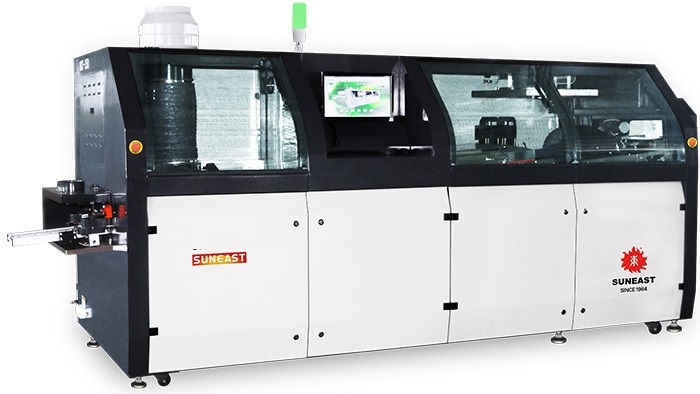

Suneast UXT-350 波峰焊机 (50~350mm, 4350*1480*1750mm)

Dimension:LxWxH(mm) 4350*1480*1750

Weigh: Approx.1800kg

Power Supply: 3PH 380V 50HZ

Startup Power: 32KW

Operation Powr Consumption: Approx.8KW

Control System: PC+PLC

Spraying movement: Step motor

Spray Pressure: 0.2Mpa-0.4Mpa

Flux Flow Arrange: Option

Auto Fill Flux: Standard

Exhaust: Top exhaust+Side exhaust

Exhaust Ducting Diameter(mm): Φ250

Exhaust Capacity: 30m³/min

Preheating Mode: Hot air Convection / IR

Control Mode: PID

Preheating Zone Number: 3

Preheating Length(mm): 1800

Preheating Temperature: Room temperature~200℃

Warm-upTime(min): Approx.12min(setting:150℃)

Blower Motor: 250W  3PH  220VAC

PCB Width(mm): 50-350

Convoyor Direction: L-R (Option:R-L)

Conveyor Speed(mm/min): 500~1800

Conveyor Height(mm): 750±20

Available Component Heigh (mm): Top 120 (Option: 240);  Bottom 15

Conveyor Speed Control Mode: Frequency converter closed-loop stepless speed regulation

Fingers: Spring tablet finger /D-40 duckbill finger/double hook finger/heavy double hook finger, choose one.

Conveyor Angle: 4-7°

Type of solder Pot: Motor drive

Solder Pot Material: Casting Iron

Wave Height Adjustment: Inverter Approx:Digital Control by PC

Cooling Method: Forced air cooling, Option: water cooler

Heater Power: 13.5KW

Solder Pot Temperature: 300℃

Solder Pot Capacity: Approx.480KG

Wave Drive Power: 180W*2  3PH 220VAC

Solder Pot Warm-up Time: Approx.150min (setting:250℃)

Temperature Control Mode: PID

Finger Cleaning System: Brush
