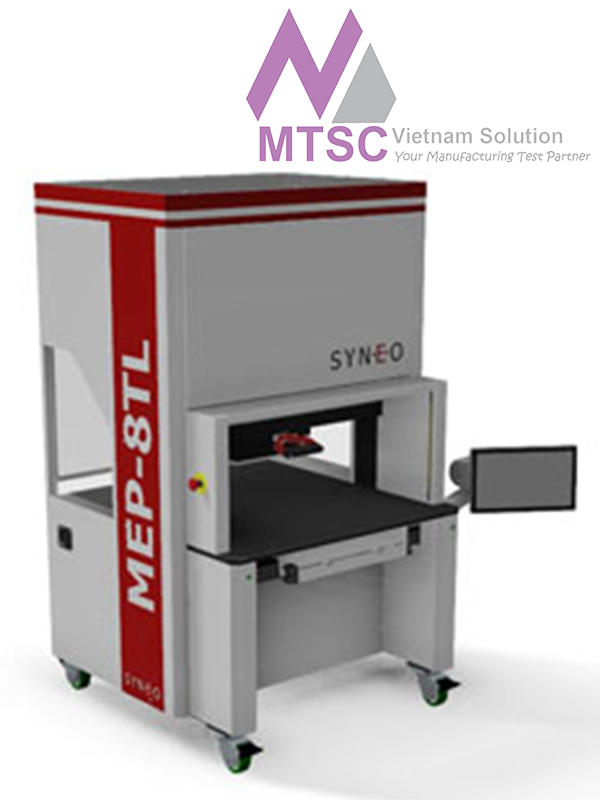

SYNEO MEP-8TL 立式手动电子压接机

Hãng sản xuất: SYNEO

Model: MEP-8TL

Bảo hành: 12 tháng


Opening 91 CM x 91 CM deep (30" x 36")

PCB 64 CM x 91 CM (24" x 36")

Servo Electric 'H'-frame design

8-ton capacity

Windows PC control with touchscreen monitor, keyboard, mouse

Full force available throughout travel

Head is manually moveable throughout opening

Flat rock press head 254 MM x 38 MM (10" x 1.5")

Teflon Hard Coat aluminum table

Two-hand safety actuation

Press to force or height with error detection

Dynamic force adjustment using PAST, PAR or FAT

Fully automatic setup, no manual adjustments

Board thickness measurement220 VAC 1 phase, 20 Amps, 50 /60 Hz

Air 80 psi for air table & sliding head air bearing

1,500 lbs. approx. weight

Shipping: 1 pallet, 190 CM x 170 CM x 196 CM high, 1900


Press Force: 8 Tons

Two Stage Force(2SF): YES

True Distance Measurement (TDM): YES

Board Size: 680mm x 910mm

Press Anvil Size: 279mm x 38mm

Dimensions: 965 x 915 x 1780mm
