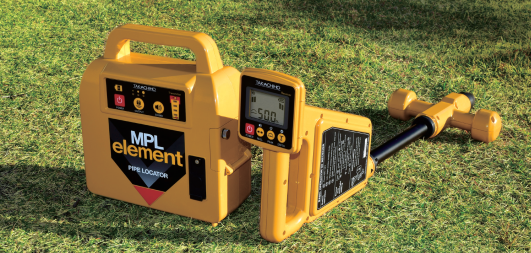

TAKACHIHO MPL Element 管道定位器

Transmitter (TX):

Output frequency: 82,175 kHz ±0.02%

Output power: 1 watt maximum

Operating Modes: Direct connection mode, Inductive mode, External coil mode (optional)

Battery type: Six Alkaline LR20 "D"

Battery life:

  Direct mode: 50 hours (Output 4 mA, 20°C/68°F)

  Full power (1W): 20 hours (20°C/68°F)

Battery Status: Low battery indication

Audio Indication: Internal Speaker: Alarm, Beeping sounds

Output Temperature: -20°C to 50°C / -4°F to 122°F

Dimensions: (H)244 mm x (W)220 mm x (D)92 mm (9.61" x 8.66" x 3.62")

Weight: 2.6 kg / 5.8 lbs. approx. Including eight batteries

Protection: IP54 (Protection from splashed water)


Receiver (RX):

Output frequency: 82.175 kHz ±20Hz

Battery type: Four Alkaline LR6 "AA"

Battery life: 30 hours (20°C/68°F, speaker sound off, backlight off)

Battery Status: Continuous indication

Power save function: Automatically power off after 30 minutes of inactivity

Visual Indication: LCD Bar graph, digital number & character, include backlight

Depth Display Range: 0 to 5 m/16 ft. Depth readout unit: meter / feet & inch

Current value: Current value flowing on the conductor is displayed for line identification in malliamps

Audio output: Internal Speaker with volume adjustment

Operating Temperature: -20°C to 50°C / -4°F to 122°F

Dimensions: (H)661 x (W)228 x (D)195 mm (26.0" x 8.98" x 7.68")

Weight: 1.1 kg/2.4 lbs. approx. including four batteries

Protection grade: IP54 (Protection from splashed water)
