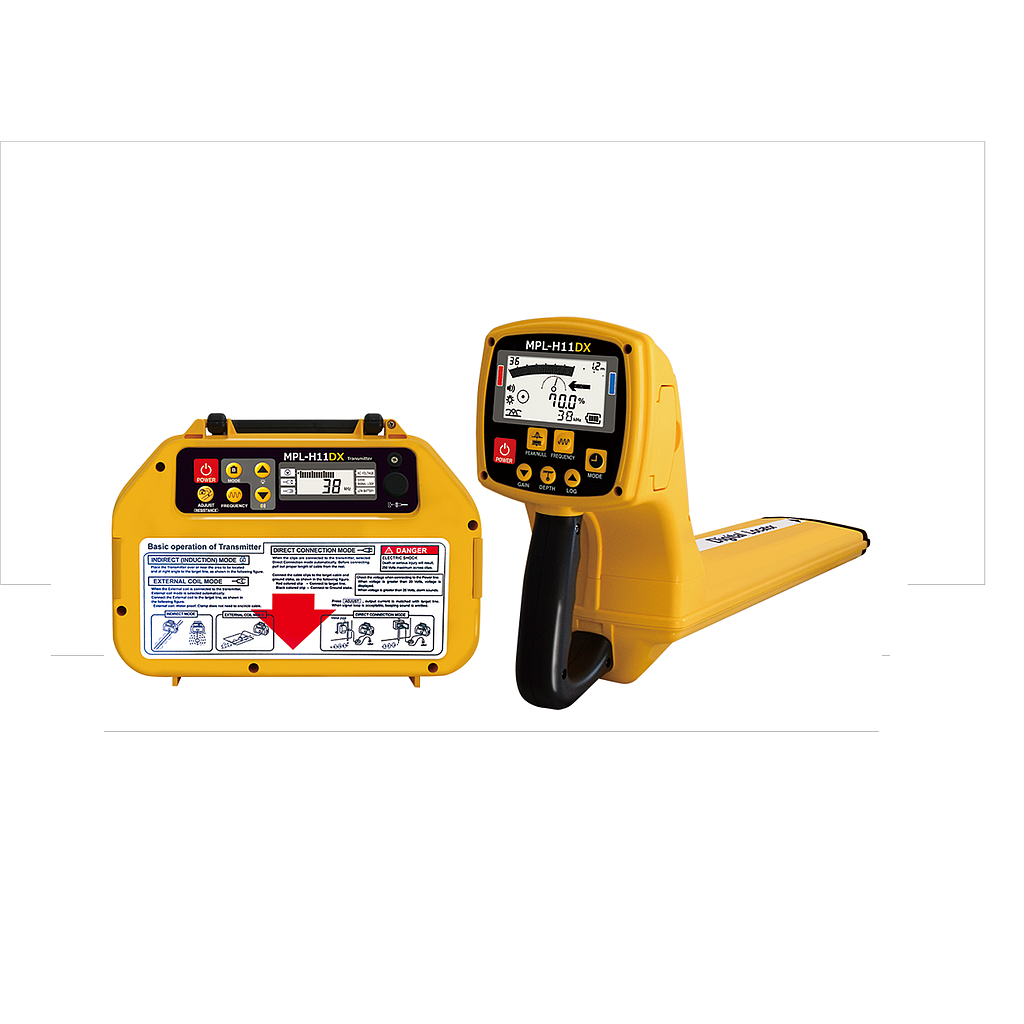

TAKACHIHO MPL-H11DX 管道和电缆定位器

- Transmitter (TX)

+ Output frequencies

* 512Hz/9.5kHz/38kHz/80kHz

* Dual: Direct 9.5 kHz & 38 kHz, Current Direction

+ Output power 5 watts maximum  / 80kHz: 1 watts maximum

+ Transmitting modes: Direct connection, Inductive, external coil clamp

+ Battery Type: Eight Alkaline LR20 "D" size

+ Battery Life:

* Direct: 50 hours (output 4 mA, 68°F/20°C)

* Inductive and external coil: 20 hours (50% output, 68°F/20°C)

+ Connectinity: Bluetooth(BLE 5.0)

+ Visual Indication: LCD with backlight

+ Measuring Function: Line Voltage: AC 0 to 250V

+ Operating temperature: -20°C to 50°C/ -4°F to 122°F

+ Material: ABS: shock and cold resistant, IP54

+ Dimensions

* When using: 314x261x110mm

* When storaging: 314x227x110mm

+ Weight 3.6kg including batteries

Receiver(RX)

+ Active Frequencies: 512Hz/9.5kHz/38kHz/80kHz, Current Direction

+ Passive Radio Radio : 9k to 33kHz

+ Passive Power:

* 60 Hz: 45 to 65Hz

* 120 Hz: 95 to 125 Hz

Measurement Modes:

Mode 1: Peak/null mode(contains both peak and null features)

Mode 2: Peak mode(used for accurate locating)

Mode 3: Null mode(used for easy locating)

Digital level: Indicate horizontal level on LCD of the Receiver

Current value: Current value flowing on the conductor is displayed by milli-Amps

+ Battery Type: Six Alkaline LR6 "AA" size

+ Battery Life: 18 hours(68°F/20°C)

+ Visual Indication: LCD with backlight

+ Operating temperature: -4°F to 122°F/ -20°C to 50°C

+ Dimensions: 130x660x270mm

+ Weight: 2.1kg including batteries

+ Connectinity: Bluetooth(BLE 5.0)

+ Material: ABS: shock and cold resistant, IP54

Interface: Data transfer port

Audio Output: Internal speaker, Earphone(optional)

Details

Datasheet
