Warranty: 12 months
Measuring Range: 0～100 mm
Arm Length: 30 mm
Fitting Holes: φ3.5 mm
Measuring Force: 7～9 N
Weight: 380 g

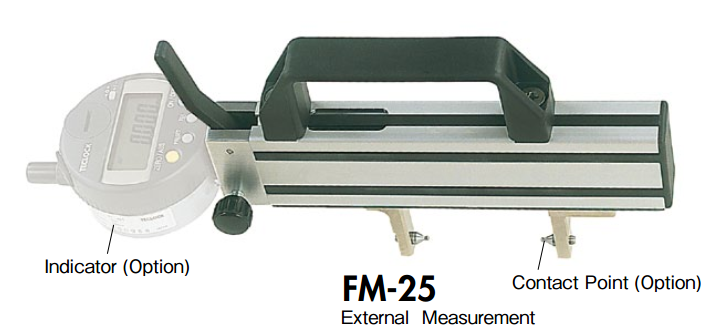

• Stable and accurate measuring dimension (comparative measurement) is possible for internal and external dimension, as this can well stick to workpiece with measurement method by sliding movable arm.
• Boxy type, easily to hold, lightweight and solid, this is suitable to inspect large volume at work site.
• This can be used for various objectives to measure internal gears, internal diameter female screw, plain gear, spline shaft of special key, over pin diameter of separation shaft and pitch gear thickness.
• Contact point is separately produced on demand such as ball type, flat type, knife edge type. Please advise dimension and shape.
• As Digital indicator is an option, please select it according to an objective. Because dial indicator can be installed.
• This can print out data by connected to Digital mini printer SD-763P
