Warranty: 12 months
Measuring Range: 4～55 mm
Resolution: 0.001 mm
Accuracy: 0.003 mm
Measuring Force: 1.5N or less

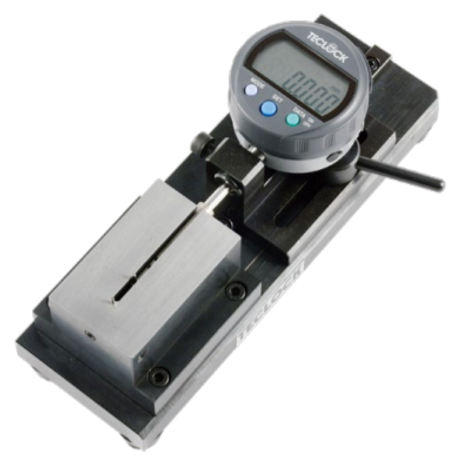

• These are exclusive equipments which comparatively measure dimension of internal diameter and outer diameter.
• After placing master gauge on measuring table and setting up standard value (zero point set up), tolerance judging measurement against standard value is possible by measuring work piece.
• Cemented carbide is provided to stylus and anvil (anvil pin).
