Warranty: 12 months
Measuring Range: 0～30 mm
Graduation: 0.1 mm
Indication Error: ±0.1 mm
Maximum Measuring Depth: 100 mm
Measuring Force: ≤ 5 N
Weight: 460 g

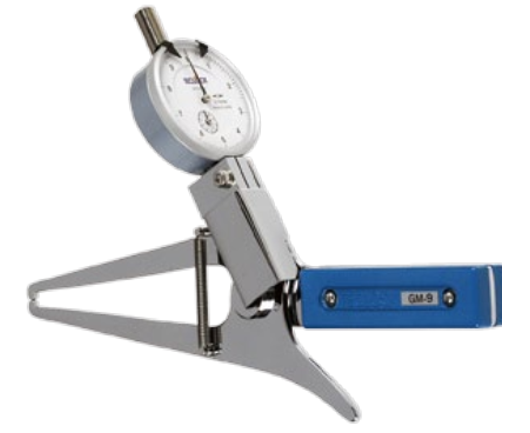

• These gauges are designed for use in measuring external dimension of thick and large measuring work piece or special shape products which
seem to be difficult to measure.
• Special order can be produced.
