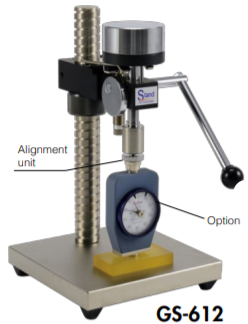

TECLOCK GS-612 硬度计测试架

Catalog

●Speed controller with high reliability is adopted for moving down speed adjustment unit.

●Alignment unit which realizes high contact between indenter (contact point) of durometer and test piece is mounted.

●65mm for analog and 40mm for digital are obtained for possible measuring range.

●Shaft with square thread is adopted that can prevent holder falling down and moving up

and down.

●1kg can be measured by type A and type E durometer as they are. Measuring by type D needs optional weight ZY-046 for measuring 5kg.. Digital durometer GSD series needs optional weight ZY-090 for measuring 1kg..

●Calibration certificate of mass (with durometer) can be issued, which are prescribed in ISO / JIS.
