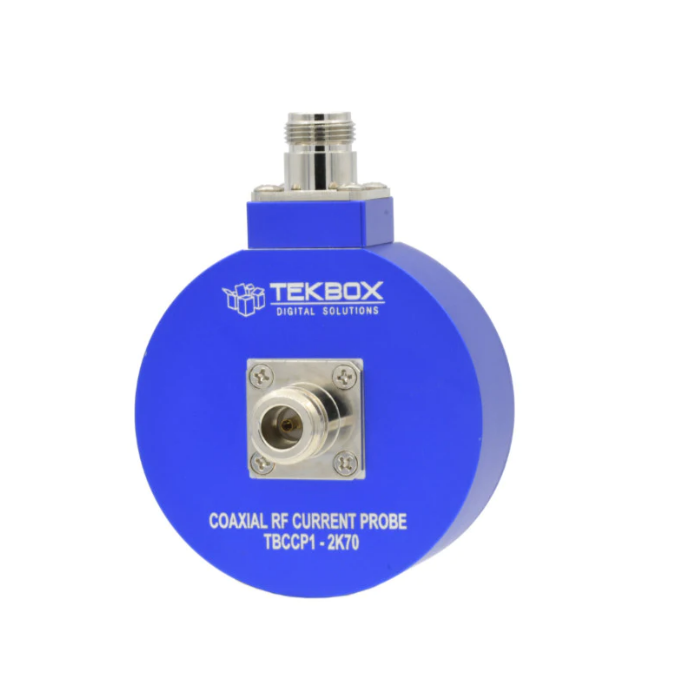

Tekbox TBCCP1-2K70 射频电流监测探头

Characterized frequency range: 10 Hz to 100 MHz

Transfer impedance: 0 dBΩ when loaded with 50Ω

3 dB bandwidth: 2 kHz to 70 MHz, typ.

Dimensions: 76 mm x 102 x 69 mm

Weight: 450 g

Connector type: N female

Max. primary current (RF): 12 A

Max. core temperature: 125 °C

Manual
