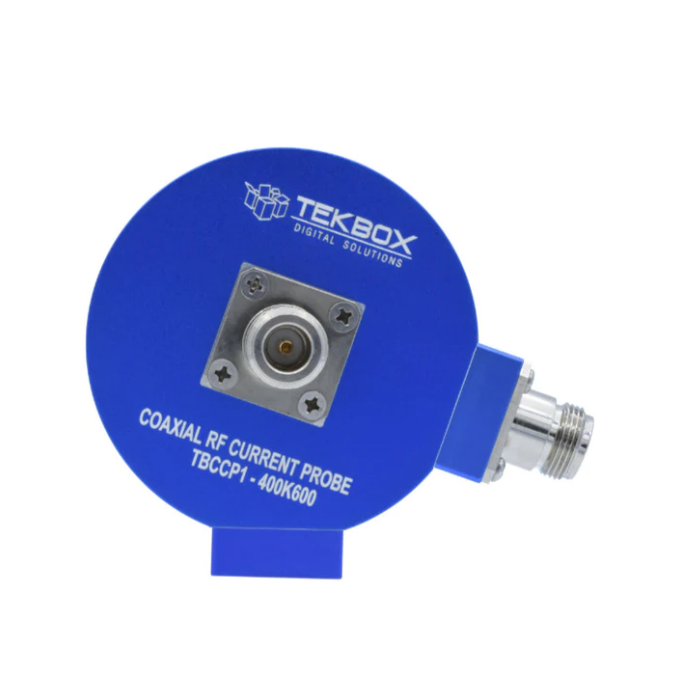

Tekbox TBCCP1-400K600 射频电流监测探头

Characterized frequency range: 10 Hz to 600 MHz

Transfer impedance: 23 dB Ohm

3 dB bandwidth: 400 kHz to 600 MHz, typ.

Dimensions: 76 mm x 102 x 69 mm

Weight: 400 g

Connector type: N female

Max. primary current (RF): 12 A

Max. core temperature: 125 °C

Manual
