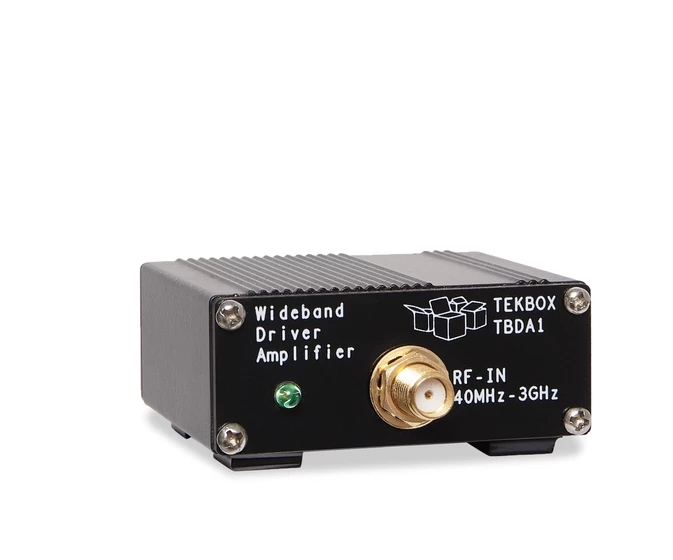

Tekbox TBDA1/14 宽带驱动放大器
制造商: Tekbox Model: TBDA1/14 保障: 12 Month - 报价要求
- 报价要求
- 联系
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 115mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +20dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +40dBm
3rd order output intercept point @ 2 GHz: +43dBm
Reverse isolation S12: -20dB
Noise Figure: 3 … 4 dB
Gain:
25 MHz: 12 dB
50 MHz: 13.8 dB
100 MHz: 14.2 dB
500 MHz: 14.2 dB
1 GHz: 14.1 dB
1.5 GHz: 14.2 dB
2 GHz: 13.6 dB
2.5 GHz: 13.8 dB
3 GHz: 14 dB
