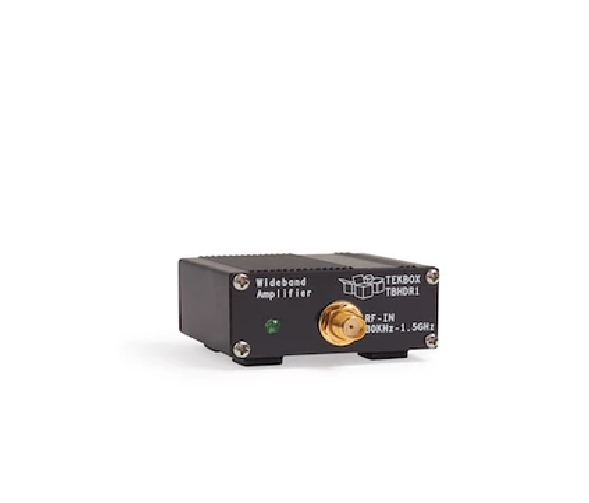

Tekbox TBHDR1 高动态范围前置放大器

Maximum supply voltage: 5.5V

Maximum input power: +10 dBm

Input, Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 100mA, Mini-USB-B connector

1dB output compression point @ 100 MHz: +19.2 dBm typical

1dB output compression point @ 500 MHz: +19 dBm typical

1dB output compression point @ 1000 MHz: +18.3 dBm typical

3rd order output intercept point @ 100 MHz: +38dBm

3rd order output intercept point @ 500 MHz: +37dBm

3rd order output intercept point @ 1000 MHz: +33dBm

Reverse isolation S12: -28dB

Input matching: 30kHz-1.5GHz < - 16 dB

Output matching: 30kHz-1.5GHz < - 10 dB

Noise Figure: 2.7 dB

Gain:

30 kHz: 17.2 dB

150 kHz: 23.6 dB

1 MHz: 24.2 dB

100 MHz: 24 dB

500 MHz: 22.9 dB

1 GHz: 21.1 dB

1.5 GHz: 19.5 dB

3 GHz: 14.1 dB

6 GHz: 5.3 dB
