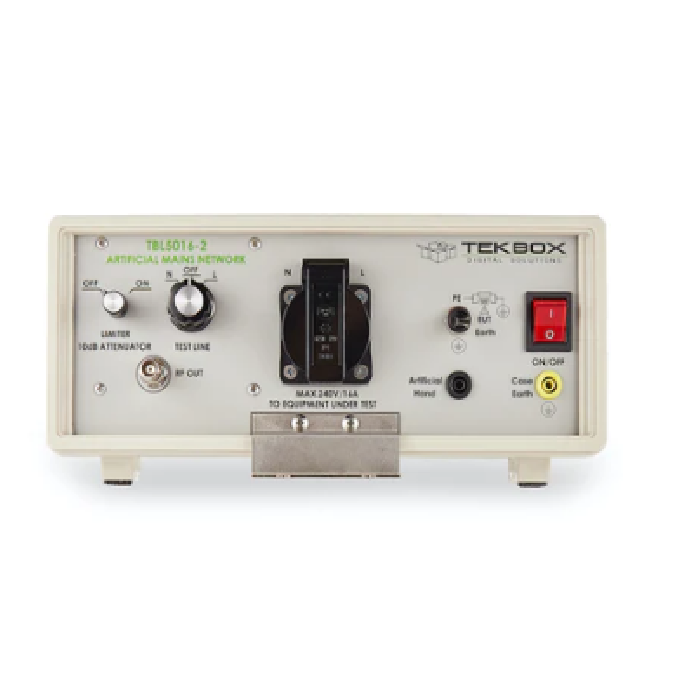

Tekbox TBL5016-2 线路阻抗稳定网络 (50µH)

Frequency range: 9 kHz to 30 MHz

Impedance: 50 Ω ║ (50 µH + 5 Ω)

Artificial hand: 220 pF + 511 Ω

Switchable PE: 50 Ω ║ 50 µH

Limiter / attenuator: 150 kHz to 30 MHz; 10 dB

Air core inductors

Line voltage: max. 240V / 50 – 60 Hz, CAT ‖‖

Max. current: 16A @ 23°C

DUT socket: country specific

Measurement connector: 50 Ω BNC

Power connector: IEC 60320 C19

Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH

Safety: Safety Class I, IEC 1010-01
