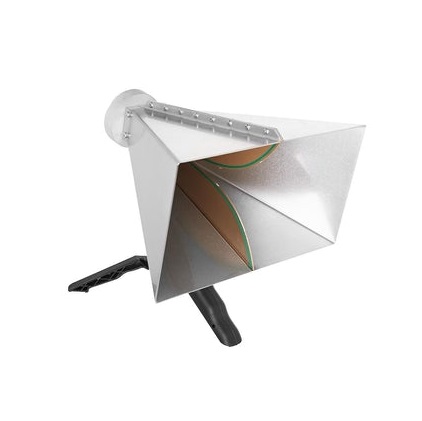

Tekbox TBMA4 双脊喇叭天线

Type: double ridged horn

Frequency range: 1 GHz – 8 GHz

Nominal impedance: 50 Ω

Connector: N type female

Maximum continuous input RF power: 100 W

Isotropic gain: 6 … 14 dBi

Antenna factor: 24 … 43 dB/m

Front to back ratio: avg. 20 dB

Voltage Standing Wave Ratio (VSWR): < 3:1 over the entire frequency range; < 2:1 average

Width: 241 mm (9.49 “)

Height: 153 mm (6.03 “)

Depth: 214 mm (8.44 “)

Weight: 1.4 kg (3.08 lbs)

Tripod Adapter Thread Size: ¼”

Indexed rear mounting flange
