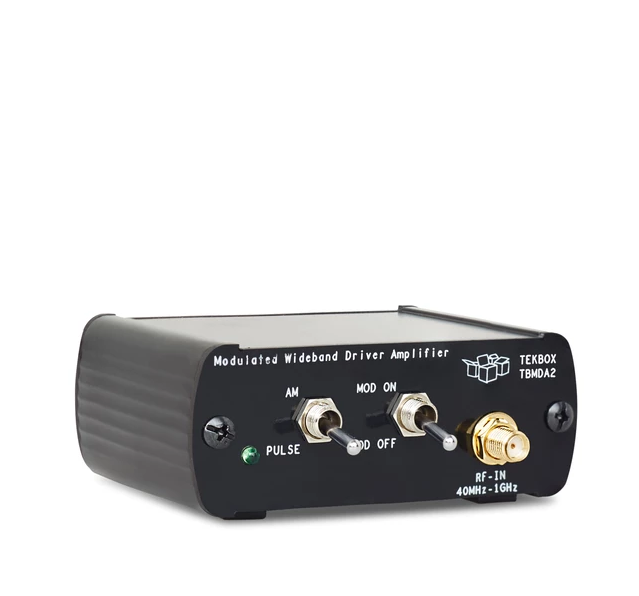

Tekbox TBMDA2 信号放大器/ 宽带式

Name: Tekbox TBMDA2 信号放大器/ 宽带式
Brand: Tekbox
SKU: TekboxTBMDA2
Price: 12123650 VND
Availability: OutOfStock

Input / Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 700mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: -8dBm continuous, 0 dBm @ 25°C for 5 minutes max.

Operating temperature range: -20°C to 50°C

Frequency range: 10MHz – 1.5 GHz

1dB output compression point @ 10MHz: +24 dBm typ.

1dB output compression point @ 100 MHz: +27 dBm typ.

1dB output compression point @ 1 GHz: +27 dBm typ.

1dB output compression point @ 1.5 GHz: +26.5 dBm typ.

Harmonics: < - 30 dBc typ.

Internal modulation frequency AM: 1 kHz ±10%

Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%

Duty cycle, PM: 50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz

Detail

Gain:

10 MHz	25 MHz	100 MHz	200 MHz	300 MHz	400 MHz	500 MHz	600 MHz	700 MHz
44.2 dB	46.3 dB	46.7 dB	46.6 dB	45.3 dB	44.2 dB	43.8 dB	42.9 dB	41.7 dB

800 Mhz	900 MHz	1 GHz	1.1 GHz	1.2 GHz	1.3 GHz	1.4 GHz	1.5 GHz
39.6 dB	40.1 dB	39.3 dB	38.5 dB	37.3 dB	36.8 dB	35.9 dB	34.8 dB

Manual

Price (exclude tax)	12,123,650 VND
Price (include tax)	13,336,015 VND
