| 制造商: | Tekbox |

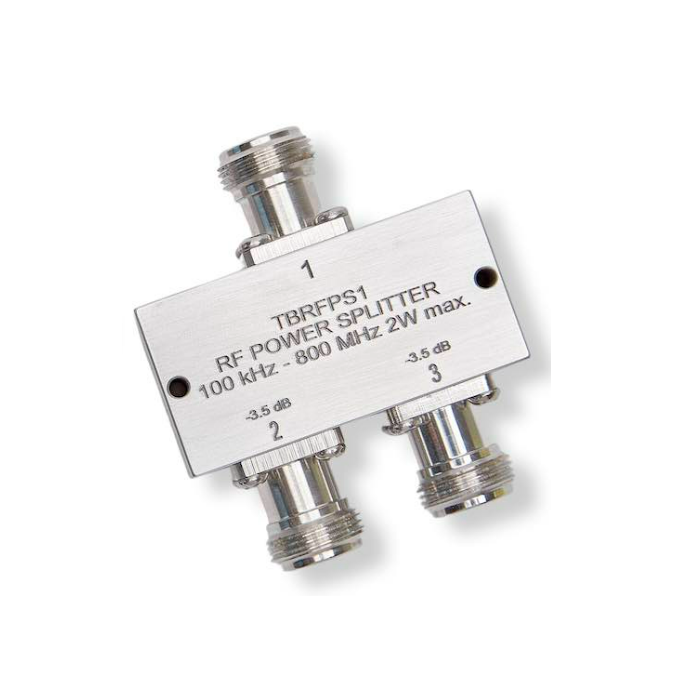

| Model: | TBRFPS1 |
Max. power [W]: 2
Frequency range [MHz]: 0.1 – 800
Typical mid-band performance
S21 above 3 dB [dB]: -0.5
S31 above 3 dB [dB]: -0.6
Amplitude unbalance [dB]: 0.1
Phase unbalance [°]: 0.1
Isolation [dB]: 23
SWR Port 1: 1.2
SWR Port 2: 1.2
SWR Port 3: 1.2
