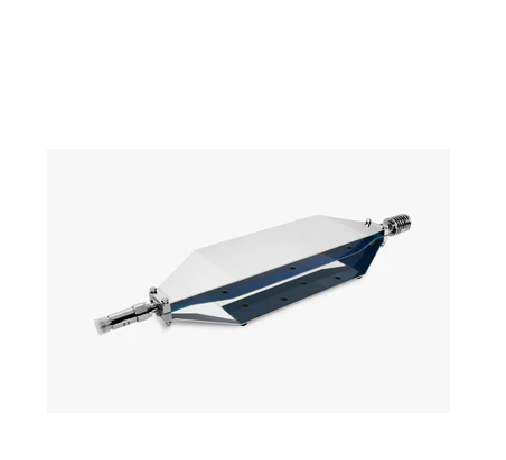

Tekbox TBTC0 开放式TEM测试单元

TEM cell dimensions:

Length: 390 mm

Width: 100 mm

Height: 62 mm

Septum height: 28 mm

TEM cell connectors: N-female

Nominal cell impedance: 10W (limited by supplied 50 Ohm Termination)

Wave impedance: 377 Ohm

Maximum RF input power: 25W

Input return loss: S11 up to 3.15 GHz < -15dB

Transmission loss: up to 3 Ghz < 3 dB, up to 6 Ghz < 4 dB

DC-Block 50V-6GHz-N

Connectors: N-Male/Female

Nominal impedance: 50 Ohm

Max. continuous RF power: 2W

Max. continuous RF voltage: 50V RMS

Frequency: 500kHz to 6 GHz

VSWR: ≤ 1.2

RF-Termination 50Ω-3GHz-25W-N

Connector: N-Male

Nominal impedance: 50 Ohm

Max. continuous RF power: 25W

Frequency: DC to 3 GHz

VSWR: ≤ 1.2

Third order intermodulation: ≤ 120 dBc
