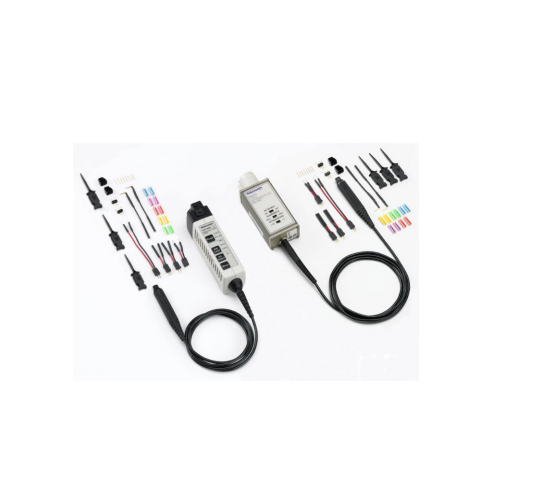

TEKTRONIX P6251 高压差分探头 (1Ghz, 100V)

Warranted characteristics
Bandwidth (probe only)
TDP1000, P6251 1 GHz
TDP0500 500 MHz
Attenuation 5X, 50X
Differential mode input voltage ±42 v (DC + pk AC); 30 VRMS
Rise time (probe only)
TDP1000, P6251 ≤350 ps
TDP0500 <700 ps="" br=""> CMRR >55 dB at 30 kHz
>50 dB at 1 MHz
>18 dB at 250 MHz (warranted at 50X attenuation)
Max input voltage (nondestruct) ±100 v (DC + pk AC)
Gain accuracy at DC ±2%
Typical characteristics
Differential input capacitance <1 pf="" br=""> Differential input resistance 1 MΩ
Sensitivity/noise level
5X attenuation 2 mVRMS
10 mVRMS (referred to the probe output)
50X attenuation 1 mVRMS
50 mVRMS (referred to the probe output)
Propogation delay 6.5 ns
Common mode input voltage ±35 v (DC + pk AC); 25 VRMS
Differential input offset range
TDP1000, TDP0500 ±42 v (5X or 50X attenuation)
P6251 ±4.25 v (5X attenuation)
±42 v (50X attenuation)
