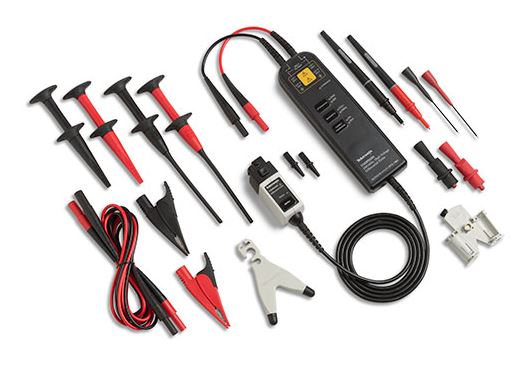

TEKTRONIX THDP0200 高压差分探头 (200Mhz, 1500V)

Attenuation 50X / 500X
Differential Voltage 500X: ±1500 V
50X: ±150 V
Common Mode Voltage ±1500 V
Maximum Input Voltage-to-Earth 1000 V CAT II
600 V CAT III
Bandwidth 200 MHz
Rise Time <1.8 ns="" br=""> Slew Rate <650 v="" ns="" at="" 1="" 500="" gain="" br=""> Input Impedance at the Probe Tip 5 MΩ || <2 pf="" br=""> Typical CMRR DC: > -80 dB
100 kHz: > -60 dB
3.2 MHz: > -30 dB
100 MHz: > -26 dB
Cable Length 1.5 m

Details

Datasheet
