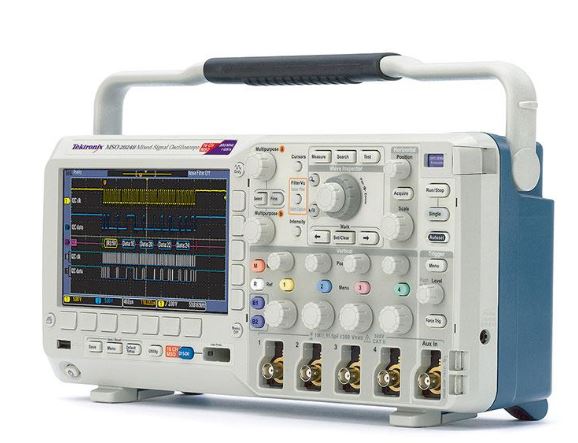

Accessories: 10x passive probe TPP0100, Desktop software, Power cord, Installation and safety manual, Documentation CD
Analog channels: 4
Bandwidth: 100 MHz
Rise time: 3.5ns
Sample rate: 1 GS/s
Record length: 1 M points
VERTICAL SYSTEM ANALOG CHANNELS
Vertical resolution: 8 bits
Offset range: 2 mV/div to 200 mV/div
HORIZONTAL SYSTEM ANALOG CHANNELS
Maximum duration of time captured at highest sample rate (all channels): 1 ms
Time base range
200 MHz models: 2ns to 100s
70, 100 MHz models: 4ns to 100s
Time-base delay time range: -10 divisions to 5000 s
Channel-to-channel deskew range: ±100 ns
Time base accuracy: ±25 ppm over any ≥1 ms interval
Trigger modes Auto, Normal, and Single
Trigger coupling DC, HF reject (attenuates >85 kHz), LF reject (attenuates <65 khz="" noise="" reject="" reduces="" sensitivity="" br=""> Trigger holdoff range 20 ns to 8 s
Trigger types: Edge, Pulse Width, Runt, Logic, Setup and Hold, Rise/Fall Time, Video
Arithmetic: Add, subtract, and multiply waveforms, FFT
Display type: 7 inch (180 mm) wide format liquid crystal TFT color display.
Display resolution: 480 horizontal × 234 vertical pixels (WQVGA).
Waveform styles: Vectors, Dots, Variable Persistence, Infinite Persistence.
Graticules: Full, Grid, Cross Hair, Frame.
Format: YT and XY.
Maximum waveform capture rate: Up to 5,000 wfm/s.
USB 2.0 high-speed host port Supports USB mass storage devices, printers, and keyboards. One port available on rear panel and one on front panel.
USB 2.0 high-speed device port Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB with a TEK-USB-488, and direct printing to all PictBridge: compatible printers.
LAN port (Ethernet) RJ-45 connector, supports 10/100BASE-T (requires DPO2CONN).
Video out port DB-15 female connector, connect to show the oscilloscope display on an external monitor or projector (requires DPO2CONN).
Auxiliary input Front-panel BNC connector. Input Impedance 1 MΩ ±2%. Max input 300 VRMS CAT II with peaks ≤ ±450 V.
Probe compensator output voltage and frequency Front-panel pins
Amplitude: 5 V Frequency 1 kHz
Kensington-style lock Rear-panel security slot connects to standard Kensington-style lock.
Power source voltage: 100 to 240 V ±10%
Power source frequency:
45 to 65 Hz (90 to 264 V)
360 to 440 Hz (100 to 132 V)
Power consumption: 80 W maximum
Optional TekVPl: external power supply 1
Output voltage: 12 V Output current 5 A Power consumption 50 W
Dimensions: 180mm x 377mm x 134mm
