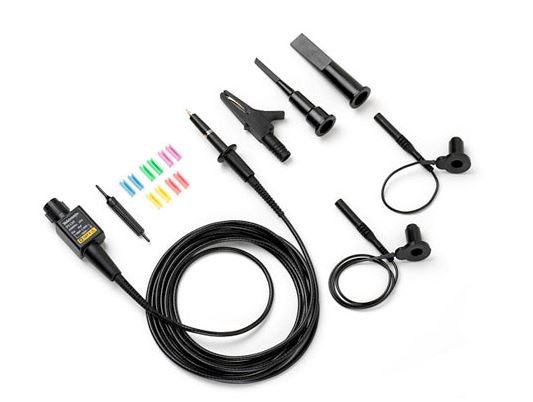

Tektronic P5100A 示波器探头, 高压无源探头（500 MHz; 2 m）

Bandwidth: DC to 500 MHz
Rise time: <700 ps> Compensation range TPP0201: 7 pF to 30 pF
Input resistance: 40 MΩ ±1.5%
Input capacitance: <2.5 pF> Propagation delay: ~6.1 ns
Maximum input voltage: 1000 V
Probe cable length: 2 m
