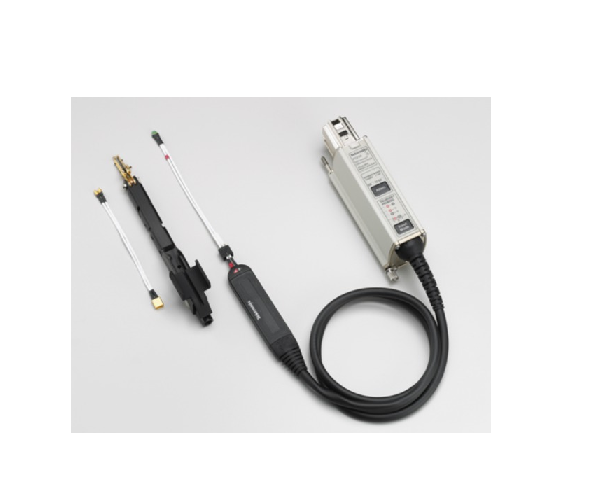

TEKTRONIX P7506 示波器探头 (6GHz)

Bandwidth (typical, probe
only)
>6 GHz
Rise time (10-90%) (typical,
probe only)
<50 ps="" 75="" ps="" br=""> Attenuation
(user selectable)
5X or 12.5X
Differential input range ±0.75 V (5X)
±1.75 V (12.5X)
Operating voltage window +4.0 to –2.0 V
Offset voltage range +2.5 to –1.5 V, A-B
mode
+3.4 to –1.8 V, other
modes
CMRR (Differential mode) >60 dB at DC
>40 dB at 50 MHz
>30 dB at 1 GHz
>25 dB at 3 GHz
>20 dB at 6 GHz
Interface TekConnect™
Cable length 1.3 meter
