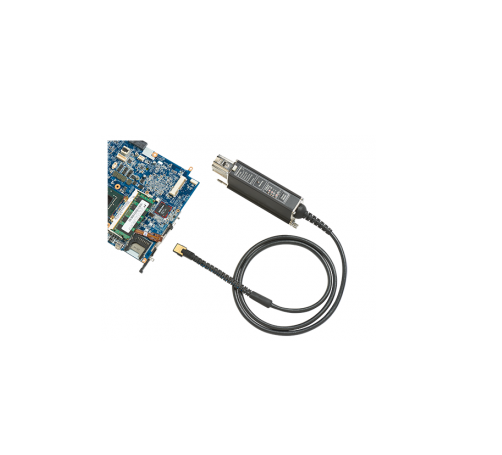

TEKTRONIX P7713 示波器探头 (13GHz)

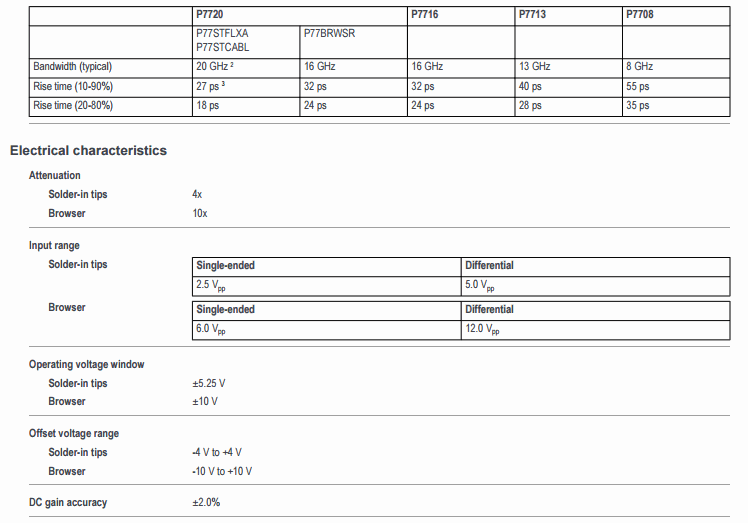

Bandwidth (typical) 13 GHz
Rise time (10-90%) 28 ps ~40 ps
Attenuation
: 4x; 10x
Input range
Solder-in tips Single-ended Differential
2.5 Vpp 5.0 Vpp
Browser Single-ended Differential
6.0 Vpp 12.0 Vpp
DC input resistance (differential)
Solder-in tips 100 kΩ
Browser 144 kΩ
Noise
Solder-in tips < 32 nV/rt-Hz
Browser < 80 nV/rt-Hz
CMRR (typical)
DC 34 dB
50 MHz 34 dB
1 GHz 24 dB
10 GHz 14 dB
20 GHz 10 dB
Interface TekConnect™
Cable length 1.3 meter
Compatible oscilloscopes The P7700 series probes are compatible with the following oscilloscopes running Microsoft Windows 7 and Tekscope firmware
version 7.5.1 or higher:
DPO70000C series
DSA70000C series
MSO70000C series
DPO70000D series
DSA70000D series
DPO70000DX series
MSO70000DX series
