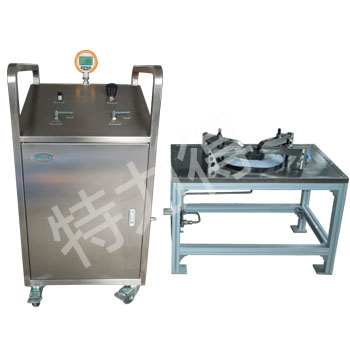

Telide PTP-4-VA 核电专用排气阀试验台 (-60~0KPa, DN300mm)

1. Test medium: air.

2. Test pressure: negative pressure-60~0KPa.

3. Maximum test range: DN150mm\ DN200mm\ DN300mm.

4. Test breathing valve type: high precision opening pressure breathing valve in nuclear island.

5. Power supply: AC220V/50Hz.

6. Dimensions and weight for control bench(L×W×H): 22×24×44 inch.

    Weight: approc.50Kg.

    Dimensions and weight for clamping bench (L×W×H): 34×22×22 inch.

    Weight: approc.88Kg
