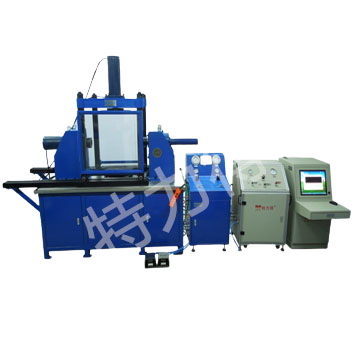

Telide TPU-3100-DM 多功能阀体及连接体强度试验台 (0-100MPa)

1. Test medium: water;

2. Supercharged drive form: pneumatic;

3. Output pressure: 0-100MPa;

4. Clamping mode: automatic hydraulic clamping;

5. Maximum clamping force: 40 tons;

6. Maximum clamping diameter: DN400mm;

7. The clamping platform has the function of up and down and left and right clamping;

8. Overall size: Supercharger cabinet: about L780* W600* H1200(mm), about 128KG
