Telwin FORCE 195 直流焊机,230V ACX 塑料箱 (1,6 - 4 mm)

DC CURRENT: 55 A

MOTORGENERATOR MINIMUM POWER: 7 kW

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX NO LOAD VOLTAGE: 72 V

MAINS FUSE: 16 A

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED CURRENT: 32 A

EFFICIENCY: 84 V

CURRENT RANGE: 15 - 170 A

ABSORBED CURRENT AT 60% - MAX 10A

POWER FACTOR (cosphi): 0,6

%USE (20°C USE): 40% @ 170A %

 MAX ABSORBED POWER: 5 kW

D. USABLE ELECTRODES IN DC: 1,6 - 4 mm

MAX CURRENT DC (EN 60974-1): 160 @8 % A

ABSORBED POWER AT 60% 1,5 kW

PROTECTION DEGREE: IP21

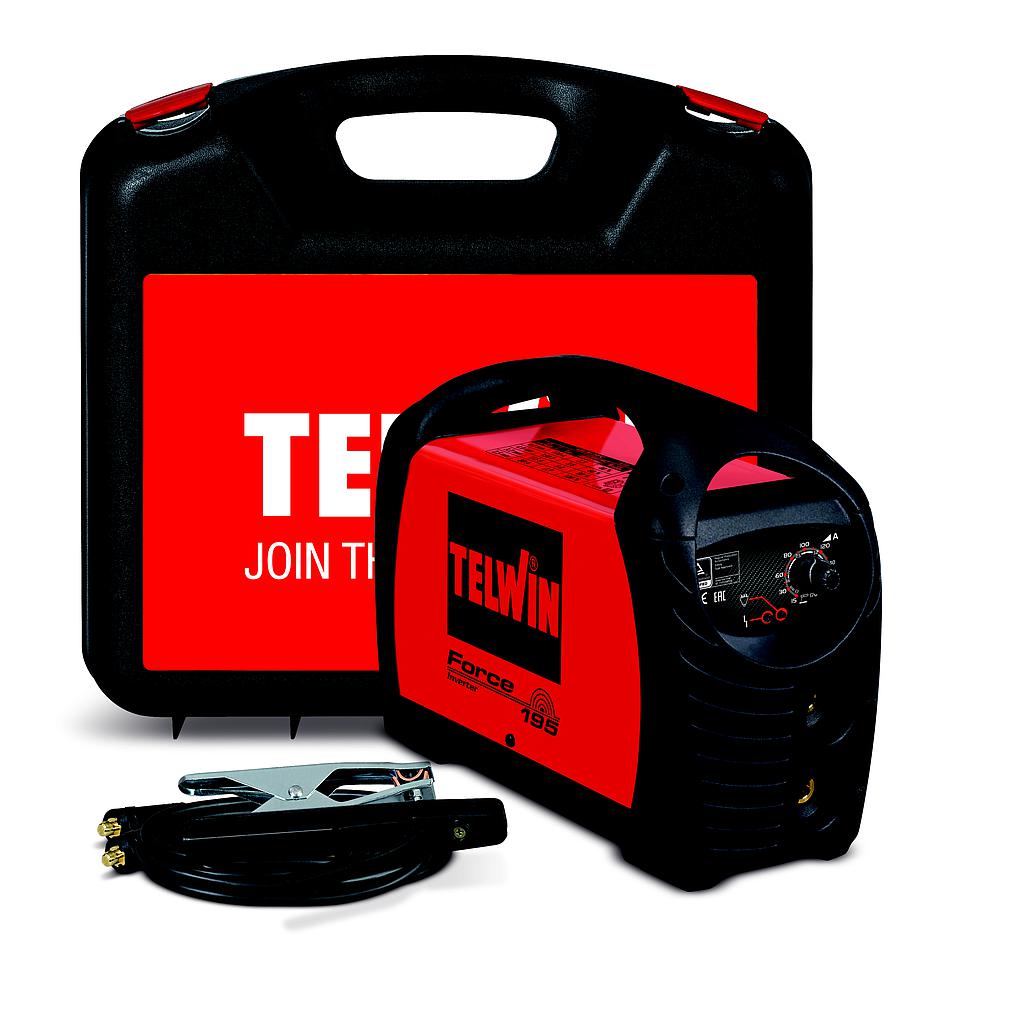

Included Accessories

CABLE 16 MMQ 1,8 M - PLUG ATLAS 25 - 124508

SLAG REMOVER - 712139

PLASTIC CARRY CASE - 322800

DALLAS 300 ELECTRODE HOLDER 300A - 712260

TOLEDO 250 WORK CLAMP 250A - 712030
