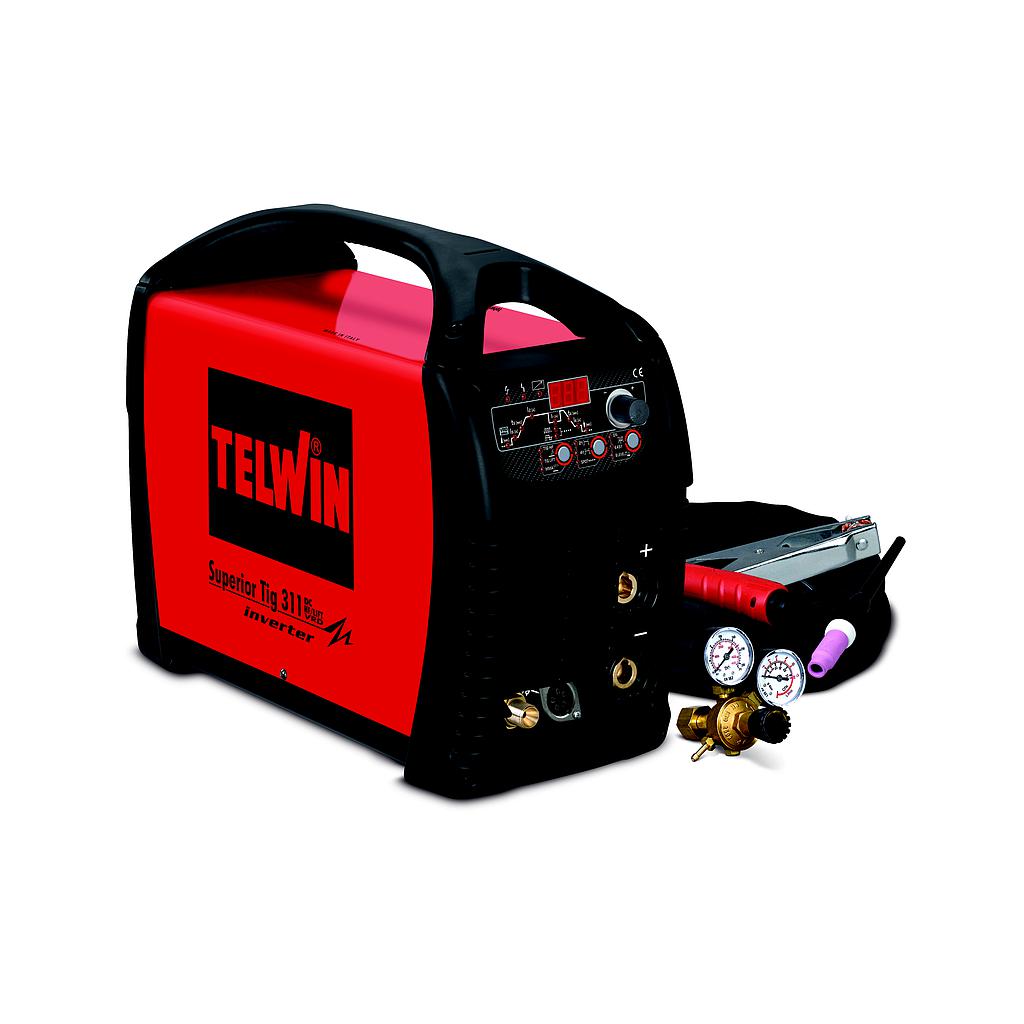

Telwin SUPERIOR TIG 311 DC-HF/LIFT 焊机 HF/LIFT 230-400V +ACC (1,6 - 5mm)

MAX ABSORBED CURRENT: 19 / 14,4 A

POWER FACTOR (cosphi): 0,9

THREE PHASE MAINS VOLTAGE: 230 /400 V

ABSORBED CURRENT AT 60% - MAX 15 / 10,2 A

D. USABLE ELECTRODES IN DC: 1,6 - 5mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 7,2 / 9,2 kW

PROTECTION DEGREE: IP23

CURRENT RANGE: 10 - 250 / 10 - 300 A

ABSORBED POWER AT: 60% 6,2 / 6,3 kW

DIMENSIONS: 47 x 19 x 35,5 cm

MAX CURRENT DC (EN 60974-1): 200 @42 % / 300 @ 30% A

MAINS FUSE: 16 / 10 A

WEIGHT: 18 kg

DC CURRENT: 185 / 205 A

EFFICIENCY: 91 V

MAX NO LOAD VOLTAGE: 61 / 64 V

Included Accessories

ARGON GAS BOTTLE IT ADAPTOR - 432036

GAS REGULATOR 2 MANOMETERS 12 L\min - 722119

TOLEDO 300 WORK CLAMP - 712231

ST26 TIG TORCH AX50 4M - 742614

CABLE 25 MMQ 3 M ATLAS 50MMQ - 713504
