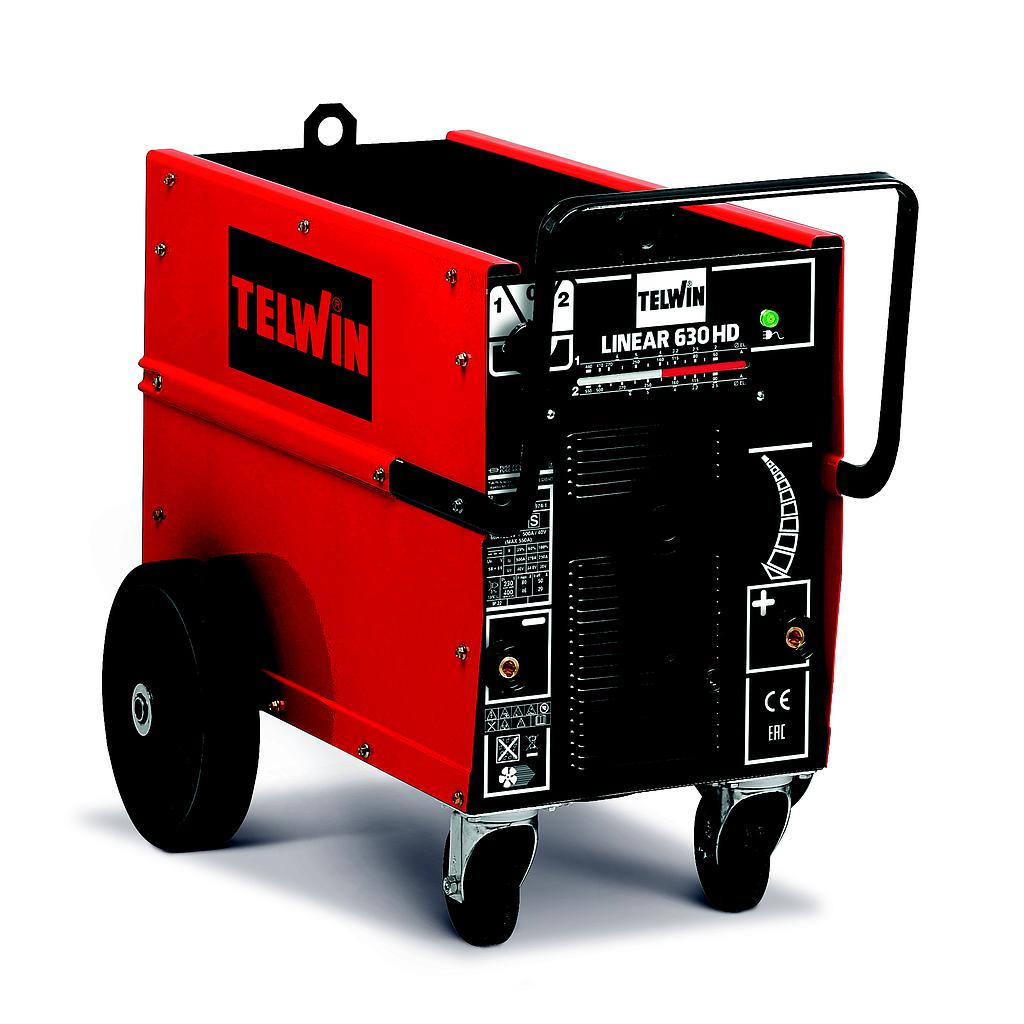

Telwin LINEAR 630 HD 交流焊机吗,230-400V (2 - 8mm)

MAX NO LOAD VOLTAGE: 69 V

PROTECTION DEGREE: IP22

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX ABSORBED POWER: 24 kW

DIMENSIONS: 100 x 54 x 76 cm

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 17 kW

WEIGHT: 180 kg

CURRENT RANGE: 60 - 550 A

POWER FACTOR (cosphi): 0,7

MAX CURRENT DC (EN 60974-1): 500 @35 % A

D. USABLE ELECTRODES IN DC: 2 - 8mm

PIECES/PALLET: 3 pz/pallet

DC CURRENT: 370 A


Details

DATASHEET


MANUAL
