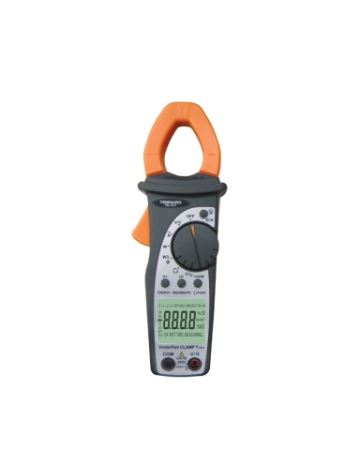

Tenmars TM-1017 钳形电流表(400A)

  • 制造商: TENMARS
    Model: TM-1017
    • 报价要求 报价要求
  • Price (exclude tax) 3,419,250 VND
    Price (include tax) 3,761,175 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specification
- Measurement range:
  + Current AC: 0.1µA~4000µA, 0.1~400A
  + Voltage AC: 0.1~600V
  + Current DC: 0~4mA
  + Voltage DC: 0.1mV~600V
- Resistance: 1~1999Ω
- Frequency: 40~400Hz
- Temperature (Type K): -50~1200C
- Diode test
- Frequency: 1Hz~660kHz
- Features:
  + LCD Display
  + Continuity Buzzer
  + Measures Phase Sequence.
  + Auto Range
  + APS
  + Min/Max
Chi tiết

CAT III 600V
Maximum conductor size 30mm.
Display counts: 4000.
Measures: ACV, DCV, ACA.
Measures Phase Sequence.
Voltage/Current Harmonics to 25th with THD.
W3ø, HV, HA, Phase SEQ, Audible continuity tests.
Frequency to 400Hz.
Active, Reactive, Apparent power/ energy on.
Power Factor, cosø on Single/Three phase systems.
Phase sequence.

Maximum Current

400 Amps

Display Counts

10000 (Backlit LCD display)

Maximum Conductor Size

30mm

AC Current Range

0.1A to 400A, ±(1.0% of rdg + 3 dgts)

AC Voltage Range

0.1V to 599.9V, ±(1.0% of rdg + 3 dgts)

DC Voltage Range

0.1V to 599.9V, ±(1.0% of rdg + 3 dgts)

Resistance

0.1 ohm to 1999 ohms ±(1.0% + 5 dgts)

Continuity Buzzer

Yes

Frequency

40Hz to 399.9 Hz ±(0.5% + 1 dgt)

Bargraph

Yes

Autoranging

Yes

Auto Power Off

Yes

Peak Hold

Yes

Data Hold

Yes

Min/Max

Yes

Power Supply

2 1.5V type AAA batteries

Dimensions

205mm (L) x 64mm (W) x 39MM (D)

Weight

280g approx. including batteries
