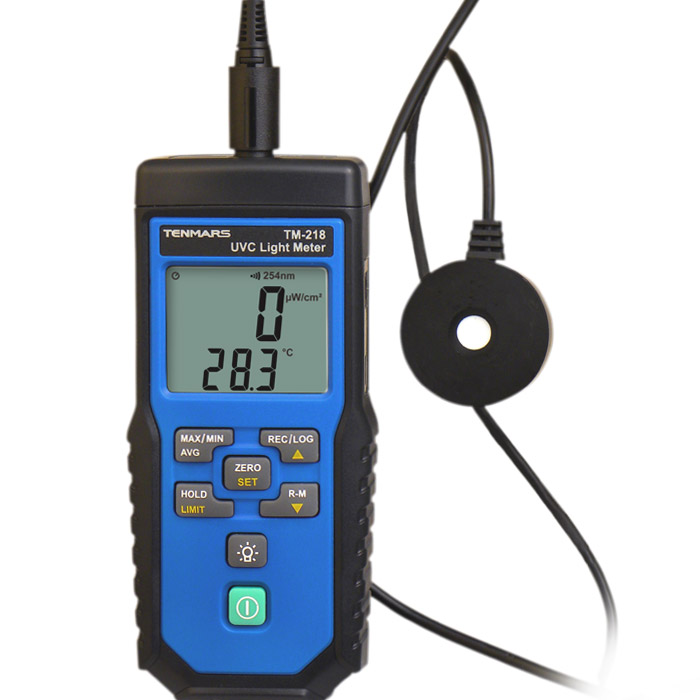

TENMARS TM-218 测光仪 (UVC, 220 nm ~280nm)

Measurable: UVC

Calibration Point: 254nm

Spectrum Range: 220 nm ~280nm

Application

Pure UV-C Monitoring

UV-A Lamp Monitoring

Lamp Monitoring: Sterilization Lamp Monitoring

The complete source for all your UV curing needs

Full UV Band Monitoring: UV Curing

UV-Integrator Measurement Range: 0-99990 mJ/cm2(9999 x10=99990)

Resolution: 1,10 mJ/cm2

Accuracy: ±10%

Irradiance Measurement Range: 9999μw/cm2,40mW/cm2

Resolution: 1μw/cm2,0.01mw/cm2

Accuracy: ± 4 + 1位(±4% ±1 digit)

Temperature: 0-70.0℃(32.0-15℉)

Resolution: 0.1℃/0.1℉

Accuracy: ±0.6℃/±1.1℉

Storage interval setting: 5s,10s, 20s, 30s,60s,5m, 10m, 20m, 30m,60m

Sample time: About 0.4 sec.
