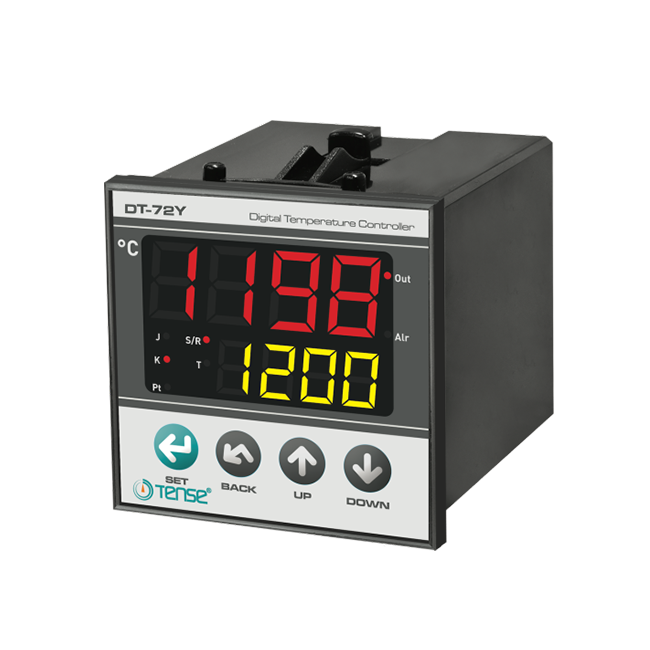

TENSE DT-72Y 数字温度控制继电器

Control Form: ON-OFF or P, PI, PD, PID - selectable

Out Output: Relay (NO + NC), 250VAC, 2A, Resistive load, (optional SSR)

Alarm Output: Relay (NO + NC), 250VAC, 2A, Resistive load

Display: 4 Digits 7 Segment (PV), 4 digits 7 Segment (SV)

Sensor Type: J,K,T,S,R type T/C, Pt100 selectable

Supply Voltage: 100..240VAC, 50-60Hz or (24VDC/AC; isolation voltage: 40VAC max.)

Protection Class: IP20

Dimensions: 72x72

Panel Cut-out: 68x68

Weight: < 0.5 kg

Torque for screwing: Max. 0.5 N.m
