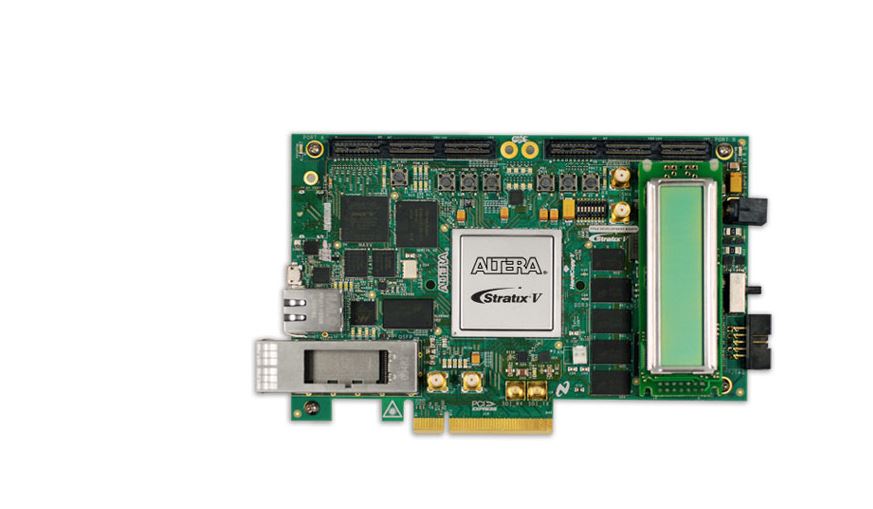

Stratix V版Terasic Altera DSP开发套件,Stratix V 版本

Manufacture: Terasic
Model: Altera  DSP

1. Featured device:
    Stratix V GS FPGA: 5SGSMD5K2F40C2N
2. Configuration, status, and setup elements
    On-board USB-BlasterTM II cable
    Fast passive parallel (FPP) configuration via MAX® V device and flash memory
    One reset config push button
    One CPU reset push button
    Two configuration push buttons
3. Clocks
    50-MHz and 125-MHz programmable oscillators
    SMA input (LVPECL)
4. General user input and output
    10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
    16x2 character LCD
    One 8-position dual in-line package (DIP) switch
    Sixteen user LEDs
    Three user push buttons
5. Memory devices
    DDR3 SDRAM (1,152 MB, x72-bit wide)
    QDR II+ SRAM (4.5 MB, 2-Mb x18-bit wide)
        Footprint compatible to QDR II 4-Mb x18-bit wide
    RLDRAM II (72-Mbyte CIO RLDRAM II with an 18-bit data bus)
6. Component and interfaces
    PCIe x8 edge connector
    Two HSMC connectors
    SMB for serial digital interface (SDI) input and output
    QSFP optical cage
    10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
7. Power
    Laptop DC input
    PCIe edge connector
    Nios® II processor web server and remote system update



The DSP Development Kit, Stratix® V Edition provides a complete design environment that includes all the hardware and software you need to begin developing DSP-intensive FPGA designs immediately. The development kit is RoHS compliant. You can use this development kit to do the following:

  • Develop and test PCI Express® (PCIe® ) designs at data rates up to Gen3 using the PCIe short card form factor-compliant development board
  • Develop and test memory subsystems for DDR3 or QDR II memories
  • Use the high-speed mezzanine card (HSMC) connectors to interface to one of over 35 different HSMCs provided by Altera partners, supporting protocols such as Serial RapidIO® , 10-Gbps Ethernet, SONET, CPRI, OBSAI, and others
