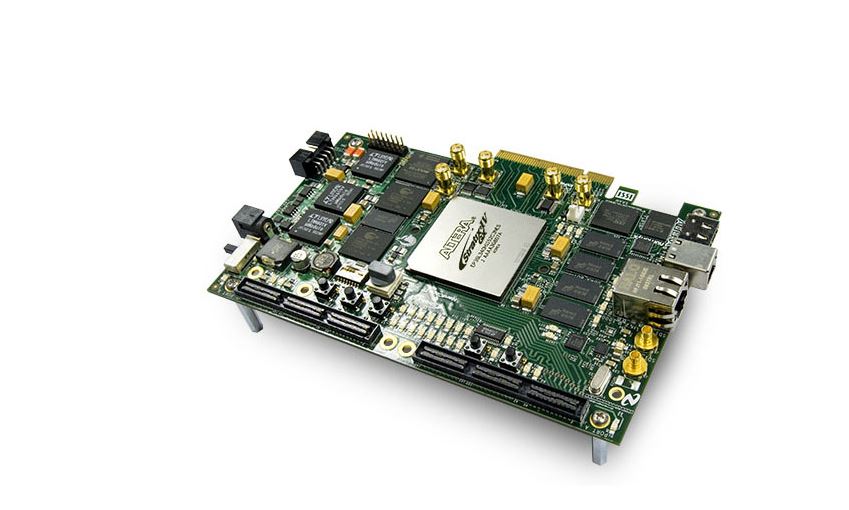

Terasic Altera Stratix IV GX FPGA开发套件

Featured devices
    Stratix IV GX EP4SGX230KF40C2N FPGA or,
    Stratix IV GX EP4SGX530KH40C2N FPGA
Configuration status and set-up elements
    Fast passive parallel (FPP) configuration via a MAX® II EPM2210 CPLD and flash memory
    On-board USB-BlasterTM download cable using Quartus II Programmer
    On-board clock oscillators: 50 MHz, 100 MHz, 125 MHz, 148.5 MHz, 155.52 MHz, and 156.25 MHz
    SMA connectors for external clock input
    SMA connectors for clock output
General user input/output
    LCD display
    Push-button and dual in-line package (DIP) switches
Memory devices
    512-MB DDR3 SDRAM with a 64-bit data bus
    128-MB DDR3 SDRAM with a 16-bit data bus
    Two 4-MB QDR II+ SRAMs with 18-bit data buses
    64-MB sync flash and 2-MB SSRAM
Component and interfaces
    PCI Express x8 edge connector
    10/100/1000BASE-T Ethernet PHY with RJ-45 connector
    Two HSMC connectors
    HDMI video output
    3G-SDI video input and output
    Power measurement circuitry
    Temperature measurement circuitry
    Laptop DC input
    PCI Express edge connector power
    Power measurement circuitry
Other features
    PCI Express half-length, full-height (6.6" x 4.376") board format
    RoHS compliant



The Altera® Stratix® IV GX FPGA Development Kit deliver a complete system-level design environment that includes both the hardware and software needed to immediately begin developing FPGA designs. With a PCI-SIG® -compliant board and a 1-year license for Quartus® II design software, you can:

  • Develop and test PCI Express® 2.0 (up to x8 lane) endpoint and root port designs
  • Develop and test memory subsystems consisting of DDR3 and QDR II+ memory
  • Build designs capable of migrating to Altera's low-cost HardCopy® IV ASICs
  • Add other Stratix IV GX FPGA-supported protocol interfaces such as 10-Gbps Ethernet, CPRI, OBSAI, SAS/SATA, Serial RapidIO® , and many others by taking advantage of the modular capability of these boards through the high-speed mezzanine connectors and over 30 different high-speed mezzanine cards (HSMCs) available.
