Terasic Altera Stratix V高级系统开发套件

1. Featured devices
    5SGXEA7N2F45C2N = FPGA 1
    5SGXEA7N2F45C2N = FPGA 2
    5M2210ZF256C4N system controller
    EPM570F100C5N on-board USB-BlasterTM II cable
2. External memory interfaces
    FPGA 1
        3072 MB 2x64+2x32 DDR3 SDRAM
        9 MB 2x18 QDRII+ SDRAM
        72 MB 4x72 MoSYS SRAM (10x10G XCVR)
        32 MB serial flash
    FPGA 2
        3072 MB 2x64+2x32 DDR3 SDRAM
        9 MB 2x18 QDRII+ SDRAM
        72 MB 4x72 MoSYS SRAM (10x10G XCVR)
        32 MB serial flash
        1 GB parallel flash for PFL
3. Clocks
    50 MHz, 100 MHz, and 125 MHz programmable oscillators
    SMA input (LVDS)
4. General user input and output
    Each FPGA has 1 8-position dual in-line package (DIP) switch
    Each FPGA has 16 user LEDs
    Each FPGA has 3 user push buttons
5. Communication interfaces
    PCIe x16 edge connector to PLX PE8747 Gen3 Switch
    One PCIe Gen3 x8 to each FPGA
    1 FMC connector (FPGA 1)
    1 HSMC port (FPGA 2)
    USB 2.0 on-board USB-Blaster II cable
6. Power
    Laptop DC input
    PCIe edge connector

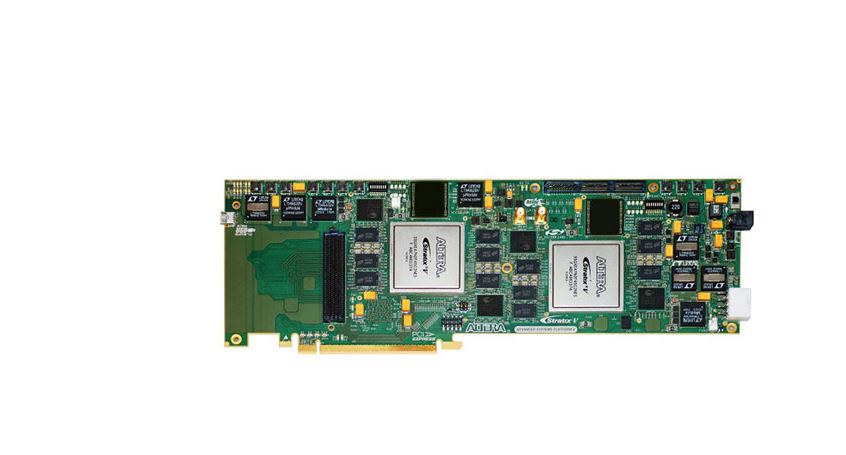

The Stratix® V Advanced Systems Development Kit is a complete systems design environment that includes both the hardware and software needed to begin architecture development and system design using Stratix V FPGAs. The PCI Express® (PCIe® )-based form-factor board combined with a one-year license for the Quartus® II software provide all that is needed to begin architecture development for a variety of applications. You can use this development kit to:

  • Prototype and breadboard designs that take advantage of the widest bandwidth PCIe Gen3, x16 lane interfaces
  • Develop and test memory subsystems consisting of DDR3, QDR II+, and MoSys® High Density serial interface memory
  • Take advantage of the modular and scalable design by using the high-speed mezzanine card (HSMC) connectors to interface to one of over 40 different HSMCs provided by Altera partners and supporting protocols such as Serial RapidIO® , 10-Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI), OBSAI, and many others
  • Utilize many third-party FMC modules to further expand connectivity to additional standard high-rate protocol modules like SFP+, QSFP, multi-rate SDI, DVB, and Ethernet AVB
  • Combine all of these capabilities to prototype and demonstrate a full multi-FPGA complex processing system
