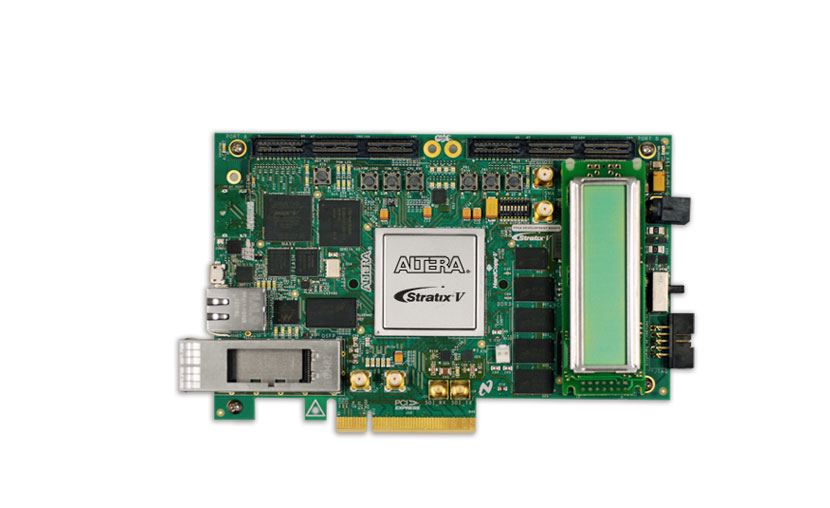

Terasic Altera Stratix V GX FPGA开发板套件

1. Featured device:
    Stratix V GX FPGA: 5SGXEA7K2F40C2N
2. Configuration, status, and setup elements
    On-board USB-BlasterTM II cable
    Fast passive parallel (FPP) configuration via MAX® V device and flash memory
    One reset config push button
    One CPU reset push button
    Two configuration push buttons
3. Clocks
    50-MHz, 125-MHz, 100-MHz, and 148.5-MHz programmable oscillators
    SMA input (LVPECL)
4. General user input and output
    10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
    16x2 character LCD
    One 8-position dual in-line package (DIP) switch
    Sixteen user LEDs
    Three user push buttons
5. Memory devices
    DDR3 SDRAM (1,152 MB, x72-bit wide)
    QDR II+ SRAM (4.5 MB, 2-Mb x18-bit wide)
        Footprint compatible to QDR II 4-Mb x18-bit wide
    RLDRAM II (72-Mbyte CIO RLDRAM II with an 18-bit data bus)
6. Component and interfaces
    PCIe x8 edge connector
    Two HSMC connectors
    SMB for serial digital interface (SDI) input and output
    QSFP optical cage
    10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
7. Power
    Laptop DC input
    PCIe edge connector
    Nios® II processor web server and remote system update



The Altera® Stratix® V GX FPGA Development Kit provides a complete design environment that includes all the hardware and software you need to begin developing FPGA designs immediately. The development kit is RoHS compliant. You can use this development kit to do the following:

  • Develop and test PCI Express® (PCIe®) designs at data rates up to Gen3 using the PCIe short card form factor-compliant development board
  • Develop and test memory subsystems for DDR3, QDR II+, or RLDRAM II memories
  • Use the high-speed mezzanine card (HSMC) connectors to interface to one of over 35 different HSMCs provided by Altera partners, supporting protocols such as Serial RapidIO®, 10-Gbps Ethernet, SONET, CPRI, OBSAI, and others
