Terasic Altera Cyclone III FPGA开发板

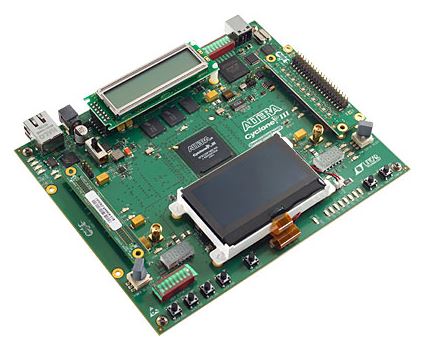

Cyclone III development board
    Cyclone III EP3C120F780 FPGA
    Embedded USB-Blaster™ circuitry (includes an Altera MAX® II CPLD) allowing download of FPGA configuration files via the flash device or the host computer
    256 megabytes (MB) of dual-channel DDR2 SDRAM with error correction code (ECC)
    8 MB of synchronous SRAM
    64 MB of flash memory
Communication ports
    10/100/1000 Ethernet
    USB 2.0
Power and analog devices from Linear Technology
    Switching power supply LTM4601
    Switching and step-down regulators LT1931 , LT3481 , and LTC3418
    Analog-to-digital converter LTC2402
    LDO regulators LT1963 and LT1761
    50-MHz and 125-MHz on-board oscillators
    SMA inputs/outputs
    I/Os for the two HSMC connectors
    Various buttons, switches, and indicators
    128 x 64 graphics LCD
    2-line x 16-character LCD
    Two HSMCs
    USB type B
Debug tools
    Three HSMC debug cards (two loop-back and a debug header)
Cables and power/analog
    14-V to 20-V DC input
    On-board power measurement circuitry
    19.8 W per HSMC interface
    Power cord with plug adapters (U.S., UK, and EU)



Altera's Cyclone III FPGA Development Kit combines the largest density low-cost, low-power FPGA available with a robust set of memories and user interfaces. The kit dramatically reduces the design and verification portion of your project, whether it’s for automotive, consumer, wireless communications, video processing or another high-volume, cost-sensitive application.

The low-cost Cyclone III FPGA family—the industry’s first family of low-cost, 60-nm devices—offers an unprecedented combination of low power, high functionality, and low cost. Cyclone III devices are ideal to complement or replace ASSPs or ASICs.

If you are an experienced FPGA designer checking out the Cyclone III architecture, you'll love building systems leveraging the 50 percent (on average) faster performance Cyclone III FPGAs offer over the competition.
