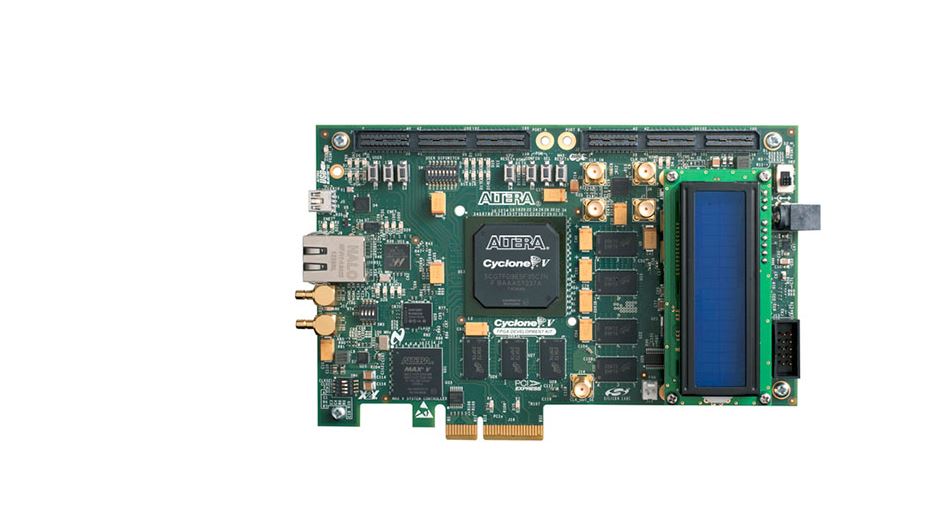

Terasic Cyclone V GT FPGA开发套件

  • 制造商: Terasic
    Model: Cyclone V GT
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

FPGA Device
    Configuration and Debug
    Quad Serial Configuration device – EPCQ256 on FPGA
    On-Board USB Blaster (Normal Type-B USB connector)
    JTAG and AS mode configuration supported
Memory Device
    Communication
    Embedded USB-Blaster II (JTAG)
    Fast Passive Parallel (PFL)
    Altera EPCQ—EPCQ256SI16N (Quad Serial Configuration Device)
Standard communication ports
    PCIe x4 edge connector
    Gigabit Ethernet (GbE)
    One SMA clock output
    Two universal high-speed mezzanine card (HSMC) connectors, each with four high-speed serial transciever channels
    One serial digital interface (SDI) channel —1 SMB for RX and 1 SMB for TX
    Channel shared with HSMA via resistor stuffing option
Push buttons, DIP switches, and LEDs
Clocking
    Programmable clock generator for FPGA reference clock input
    125 MHz LVDS oscillator for FPGA reference clock input
    148.5/148.35 MHz LVDS VCXO for FPGA reference clock input
    50 MHz single-ended oscillator for FPGA and MAX  V CPLD clock input
    100 MHz single-ended oscillator for MAX  V CPLD configuration clock input
    SMA input (LVPECL)
Power
    Laptop DC Input 14 – 20 V adapter
    PCIe edge connector
System monitoring circuit
    Power (Voltage, Current, Wattage)
Mechanical
    PCIe card standard size (4.376" x 6.600")

详细

Catalog

The Altera® Cyclone® V GT FPGA Development Kit can be used to prototype Cyclone V GT FPGA or Cyclone V GX FPGA applications. It offers a quick and simple way to develop low-cost and low-power FPGA system-level designs and achieve rapid results. This kit supports a myriad of functionalities such as:

•FPGA prototyping
•FPGA power measurement
•Transceiver I/O performance up to 5.0 Gbps
•PCI Express® (PCIe®) Gen2 x4 (at 5.0 Gbps per lane)
•Endpoint or rootport support
