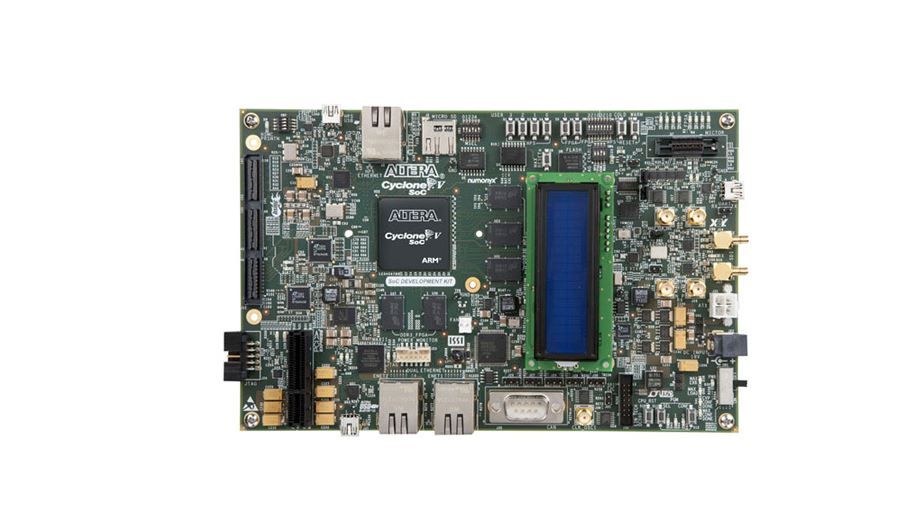

Terasic Cyclone V SoC开发套件嵌入式设计

Featured devices
    Cyclone V SX SoC—5CSXFC6D6F31C6N (SoC)
    MAX® V CPLD—5M2210ZF256C4N (system controller)
    MAX II CPLD—EPM570GF100 (embedded USB-BlasterTM II cable)
FPGA configuration sources
    Embedded USB-Blaster II (JTAG) cable
    EPCQ flash (PFL)
    Hard processor system (HPS)
FPGA memory
    1 GB DDR3 SDRAM (32 bit)
FPGA I/O interfaces
    2X 10/100 Ethernet PHYs (EtherCAT)
    PCIe Gen 1 x4 female connector
    Universal high-speed mezzanine card (HSMC)—x4 transceivers, x16 TX LVDS, x16 RX LVDS
    One serial digital interface (SDI) channel
    Four SMAs for one transceiver channel
    x4 push buttons
    x2 switches
    x4 LEDs
HPS boot sources
    128 MB QSPI Flash
    Removable Micro-SD Card flash
HPS memory
    1 GB DDR3 SDRAM (32 bit) with error correction code (ECC)
    128 MB QSPI flash
    Micro-SD Card socket with 4 GB Micro-SD Card flash device
HPS I/O interfaces
    x1 USB 2.0 On-the-Go (OTG)
    x1 10/100/1000 Gigabit Ethernet (10GbE/100GbE/1000GbE)
    x1 CAN
    x1 UART (UART to USB bridge)
    x1 real-time clock (with battery backup)
    x1 two-line text LCD
    1-/2-channel, 20 bit delta-sigma analog-to-digital converter (Linear Technology LTC2422)
    x4 push buttons
    x4 switches
    x4 LEDs
    Four-output programmable clock generator for FPGA reference clock inputs
    125 MHz LVDS oscillator for FPGA reference clock input
    148.5 MHz LVDS programmable voltage-controlled crystal oscillator (VCXO) for FPGA reference clock input
    50 MHz single-ended oscillator for FPGA and MAX V FPGA clock input
    100 MHz single-ended oscillator for MAX V FPGA configuration clock input
    SMA input for HPS clock
    Laptop DC input 14—20 V adapter
System monitoring circuit
    Power (voltage, current, wattage)
HSMC breakout board
HSMC loopback board
        Board dimensions—8.19” x 5.22”
    Cyclone V SX FPGA Development Kit software content
    Design examples
        Board test system (BTS)*
        Golden System Reference Design with Board Update Portal web server
    Complete documentation
    SoC Embedded Design Suite Subscription Edition
        ARM Development Studio 5 (DS-5™) Altera Edition Toolkit
        Hardware-to-software handoff tools
        Linux run-time software for application development
        SoC hardware libraries for firmware development
        Application examples
    Free software supported by Quartus® II software v13.1, Web Edition



The Altera® Cyclone® V SoC Development Kit offers a quick and simple approach to develop custom ARM® processor-based SOC designs accompanied by Altera’s low-power, low-cost Cyclone V FPGA fabric. This kit supports a wide range of functions, such as:

  • Processor and FPGA prototyping and power measurement
  • Industrial networking protocols
  • Motor control applications*
  • Acceleration of image- and video-processing applications*
  • PCI Express® (PCIe®) x4 lane with ~1,000 MBps transfer rate (endpoint or rootport)

*Application-specific daughtercards, available separately, supporting a wide range of I/O and interface standards.
