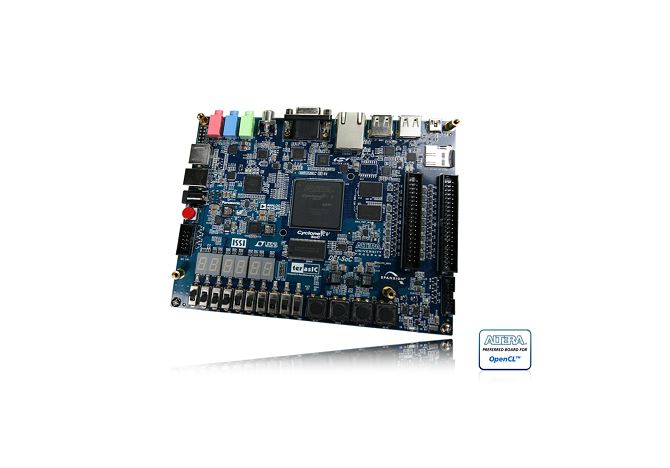

Terasic DE1-SoC 开发板

1. FPGA Device
    Cyclone V SoC 5CSEMA5F31C6 Device
    Dual-core ARM Cortex-A9 (HPS)
    85K Programmable Logic Elements
    4,450 Kbits embedded memory
    6 Fractional PLLs
    2 Hard Memory Controllers
2. Configuration and Debug
    Serial Configuration device – EPCS128 on FPGA
    On-Board USB Blaster II (Normal type B USB connector)
3. Memory Device
    64MB (32Mx16) SDRAM on FPGA
    1GB (2x256Mx16) DDR3 SDRAM on HPS
    Micro SD Card Socket on HPS
4. Communication
    Two Port USB 2.0 Host (ULPI interface with USB type A connector)
    USB to UART (micro USB type B connector)
    10/100/1000 Ethernet
    PS/2 mouse/keyboard
    IR Emitter/Receiver
5. Connectors
    Two 40-pin Expansion Headers (voltage levels: 3.3V)
    One 10-pin ADC Input Header
    One LTC connector (One Serial Peripheral Interface (SPI) Master ,one I2C and one GPIO interface )
6. Display
    24-bit VGA DAC
7. Audio
    24-bit CODEC, Line-in, line-out, and microphone-in jacks
8. Video Input
    TV Decoder (NTSC/PAL/SECAM) and TV-in connector
9. ADC
    Sample rate: 500 KSPS
    Channel number: 8
    Resolution: 12 bits
    Analog input range : 0 ~ 4.096 V
10. Switches, Buttons and Indicators
    4 User Keys (FPGA x4)
    10 User switches (FPGA x10)
    11 User LEDs (FPGA x10 ; HPS x 1)
    2 HPS Reset Buttons (HPS_RST_n and HPS_WARM_RST_n)
    Six 7-segment displays
11. Sensors
    G-Sensor on HPS
12. Power
    12V DC input
13. Kit contents
    DE1-SoC Board
    DE1-SoC Quick Start Guide
    Type A to B USB Cable
    Type A to Mini-B USB Cable
    Power DC Adapter (12V)
