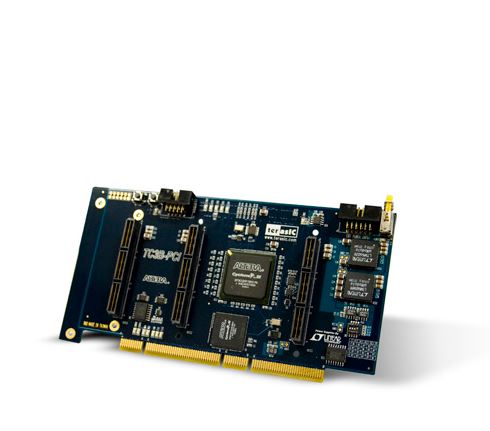

Terasic PCI-X开发板

 Altera Cyclone® III 3C120 FPGA device.
        119,088 logic elements (LEs)
        3,981,312 total RAM bits
        288 18 x 18 multiplier blocks
    Altera Cyclone® III 3C25 FPGA device.
    EPCS64 and EPCS16 Configuration Device
    Up to 4GB DDR2 SO-DIMM
    Support 120 Low Voltage Differential Signal (LVDS) pairs.
    Clock Source
        100Mhz Osc.
        80Khz to 200Mhz Programmable PLL
    Selectable IO Voltage (1.2V / 1.5V /1.8V/ 2.5V / 3.3V)
    Powerful Software - PCI System Builder
    Complete Reference Designs



The TERASIC Cyclone® III PCI-X development board provides a hardware platform for developing and prototyping low-power, high-performance, logic-intensive PCI-based designs. The board has a high-density of the external memory to facilitate the design and development of FPGA designs which need huge storage capacity and high bandwidth memory. It also includes Low-Voltage Differential Signaling (LVDS) interface of the High-Speed Terasic Connectors (HSTCs) for extra high-speed interface application.
To simplify the design process, we provide the software PCI System Builder that supplies a convenient way to build interfaces between host PC and user logic on FPGA, and also contains the interface of multi-port memory controller which allows shared access to a unique external memory.
