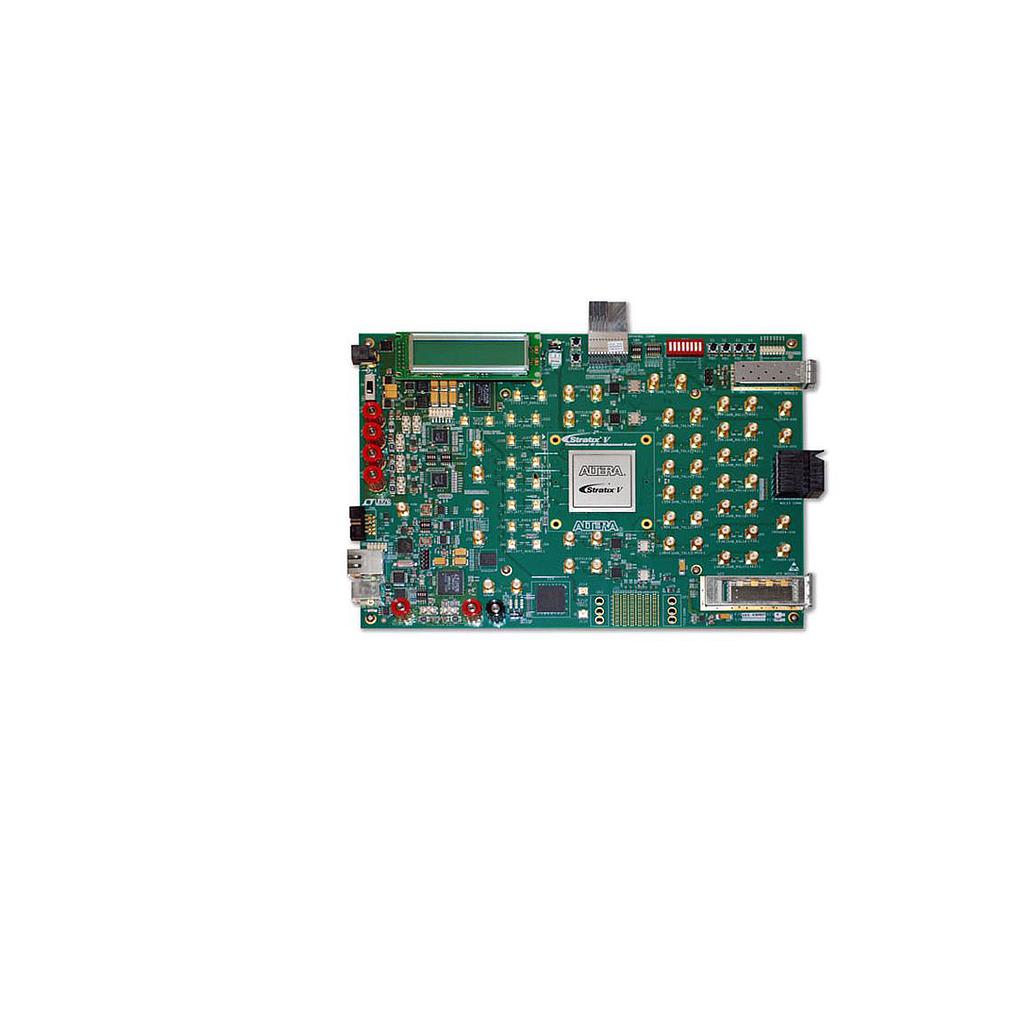

Terasic Altera收发器信号完整性开发套件, Stratix V GX版

1. Featured device
2. Configuration status and set-up elements
    On-board USB-BlasterTM
    Fast passive parallel (FPP) configuration via MAX® II device and flash memory
    Two configuration file storage
    Temperature measurement circuitry (die and ambient temperature)
3. Clocks
    50 MHz, 125 MHz, programmable oscillators (preset values: 624 MHz, 644.5 MHz, 706.25 MHz, and 875 MHz)
    SMA connectors for supplying an external differential clock to transceiver reference clock
    SMA connectors for supplying an external differential clock to the FPGA fabric
    SMA connectors to output a differential clock from the FPGA's phase-locked loop (PLL) output pin
4. General user input/output
    10-/100-/1000-Mbps Ethernet PHY (RGMII) with RJ-45 (copper) connector
    16x2 character LCD
    One 8-postion dipswitch
    Eight user LEDs
    Four user pushbuttons
5. Memory devices
    128-megabyte (MB) sync flash memory (primarily to store FPGA configurations)
6. High speed serial interfaces
    Seven full-duplex transceiver channels routed to SMA connectors
        Short trace routed on a micro-strip
        Six strip-line channels from the with all the trace lengths are matched across channels
    21 full-duplex transceiver channels routed to backplane connector
        Seven channels to Molex® Impact® connector
        Seven channels to Amphenol® XCede®
        Seven channels to footprint of Tyco Strada® Whisper® (connector is not populated)
7. Power
    Laptop DC input
    Voltage margining



The Altera® Stratix® V GX Transceiver Signal Integrity (SI) Development Kit provides a platform for electrical compliance testing and interoperability analysis. The accessibility to multiple channels allows for real-world analysis as implemented in the system with transceiver channels available through SMA and popular backplane connectors. You can use this development kit to perform the following tasks:

  • Evaluate transceiver link performance from 600 Mbps to 12.5 Gbps
  • Generate and check pseudo-random binary sequence (PRBS) patterns via a simple to use GUI (does not require the Quartus® II software)
  • Access advanced equalization to fine tune link settings for optimal bit error ratio (BER)
  • Perform jitter analysis
  • Verify physical medium attachment (PMA) compliance to 10GbE, 10GBASE-KR, PCI Express® (PCIe®)(Gen1, Gen2, and Gen3), Serial RapidIO®, Gigabit Ethernet, 10-Gigabit Ethernet XAUI, Common Electrical I/O (CEI) 6G, CEI-11G, high-definition serial digital interface (HD-SDI), Interlaken, and other major standards
  • Use the built-in high speed backplane connectors to evaluate custom backplane performance and evaluate link BER
