Terasic Arria II GX视频开发系统

        124,100 logic elements (LEs)
        49,640 adaptive logic modules (ALMs)
        8,121 Kb on-chip memory
        12 high-speed transceivers
        6 phase-locked loops (PLLs)
        576 18x18 multipliers
        0.9V core power
    Max® II EPM2210F256 CPLD
        2.5V core power
    On-board ports
        One HSMC expansion port
        One gigabit Ethernet port
    PCI Express x8 Edge Connector
        Support connection speed of Gen1 at 2.5Gbps/lane
        Connection established with PC motherboard with x8 PCI Express slot
    On-board Memory
        128MB 16bit DDR3 device
        1GB 64bit DDR2 SO-DIMM
        2MB SSRAM
        64MB FLASH
    FPGA Configuration Circuitry
        MAX II CPLD and flash fast passive parallel configuration
        On-board USB-Blaster™ circuitry using the Quartus II Programmer
    On-board Clocking Circuitry
        Four on-board oscillators
            Programmable oscillator, default frequency 125MHz
            Programmable oscillator, default frequency 100MHz
        SMA connectors for external LVPECL clock input
        SMA connector for clock output
    General User I/O
            Four user LEDs
            Two-line character LCD display
            One configuration-done LED
            One HSMC interface transmit/receive LED (Tx/Rx)
            Three PCI Express LEDs
            Five Ethernet LEDs
        One user reset (CPU reset)
        One MAX II CPLD reset
        One load image (program FPGA from flash)
        One image select (select image to load from flash)
        Two general user push-buttons
    DIP Switches
        Four user DIP switches
        Eight MAX II device control DIP switches
    Power Supply
        14V to 20V DC input
        PCI Express edge connector power
        On-board power measurement circuitry
    Arria II GX FPGA Development Kit CD-ROM
        Design examples
            Board Update Portal, featuring the Nios® II processor web server and remote system update
            Board test system
    Altera's Complete Design Suite DVD
        Quartus II Software Development Kit Edition, includes support for Arria II GX FPGAs
        Nios II Embedded Design Suite
        MegaCore® IP Library includes PCI Express, Triple Speed Ethernet, SDI, and DDR3 High-Performance Controller IP cores
            IP evaluation available through OpenCore Plus
    Digital Transmitter
        One DVI transmitter with single transmitting port
        Digital Visual Interface (DVI) Compliant
        Supports resolutions from VGA to UXGA (25 MHz – 165 MHz Pixel Rates)
        Universal Graphics Controller Interface
            12-Bit, Dual-Edge and 24-Bit, Single-Edge Input Modes
            Adjustable 1.1 V to 1.8 V and Standard 3.3 V CMOS Input Signal Levels
            Fully Differential and Single-Ended Input Clocking Modes
            Standard Intel 12-Bit Digital Video Port Compatible as on Intel™ 81x Chipsets
        Enhanced PLL Noise Immunity
            On-Chip Regulators and Bypass Capacitors for Reducing System Costs
        Enhanced Jitter Performance
            No HSYNC Jitter Anomaly
            Negligible Data-Dependent Jitter
            Programmable Using I²C Serial Interface
            Single 3.3-V Supply Operation
    Digital Receiver
        One DVI receiver with single receiving port
        Supports UXGA Resolution (Output Pixel Rates Up to 165 MHz)
        Digital Visual Interface (DVI) Specification Compliant

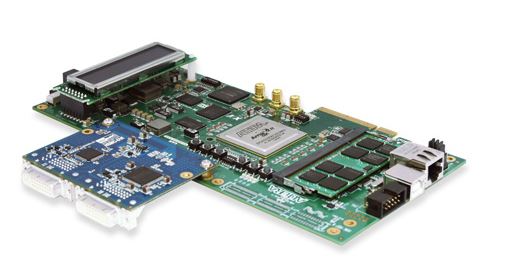

The Arria II GX Video Development System is an ideal video processing platform for high-end video applications. Terasic recognized for its strong design expertise in high-end video, imaging and multimedia products have made available a video development package that targets video processing development using an Arria II GX device. The package includes an Arria II GX FPGA development kit (DK-DEV-2AGX125N) featuring an EP2AGX FPGA device with HSMC connectors to allow additional functionality and connectivity via HSMC daughter boards. The Arria II GX FPGA development kit delivers a complete PCI Express-based development platform. This interface uses the Arria II GX device’s PCI Express hard IP to accelerate development time for high-volume PCI Express applications including add-in cards, host bus adapters, graphics cards, and high-end servers. Furthermore, the board includes an abundant amount of memory including on-board DDR3 device and DDR2 SODIMM, creating a complete integrated memory interface solution for memory-intensive applications.

The DVI-HSMC daughter card part of the bundled package will allow developers to access high quality and high resolution video signals that can support resolution up to 1600x1200. A complete DVI video controller design with source code is provided.

The development can also allow users to experience advanced image processing designs incorporating VIP (Altera’s Video and Image Processing Suite MegaCore Functions).
