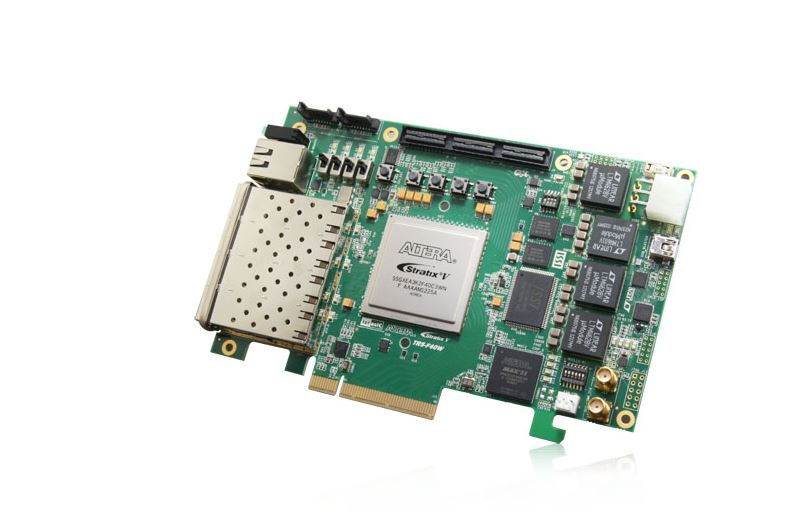

Terasic TR5-F40W 开发板

1. Altera Stratix® V GX FPGA (5SGXEA3K2F40C3)
        On-Board USB Blaster II or JTAG header for FPGA programming
        Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
2. General user input / output:
        4 LEDs
        1 LED Array
        4 push-buttons
        4 slide switches
 3. On-Board Clock
        50MHz Oscillator
        Programmable oscillators Si570 and CDCM61004
 4. Memory
 5. Communication Ports
        Four SFP+ connectors
        One SATA host port
        One SATA device port
        PCI Express (PCIe) x8 edge connector
        One RS422 transceiver with RJ45 connector
        One HSMC Connector (voltage levels: 2.5/1.8/1.5V)
 6. System Monitor and Control
        Temperature sensor
        Fan control
 7. Power
        PCI Express 6-pin power connector, 12V DC Input
        PCI Express edge connector power
 8. Mechanical Specification
        PCI Express standard height and half-length



The Terasic TR5-F40W Stratix V GX FPGA Development Kit provides the ideal hardware platform for developing high-performance and high-bandwidth application. With a standard-height, half-length form-factor package, the TR5-F40W is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Stratix V GX, delivering the best system-level integration and flexibility in the industry.

The Stratix® V GX FPGA features 340K logic elements and integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the TR5-F40W to be fully compliant with version 3.0 of SATA, version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 10G SFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. An HSMC expansion port also allows users to connect custom daughter cards such as those found on cards.terasic.com. The feature-set of the TR5-F40W fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.
