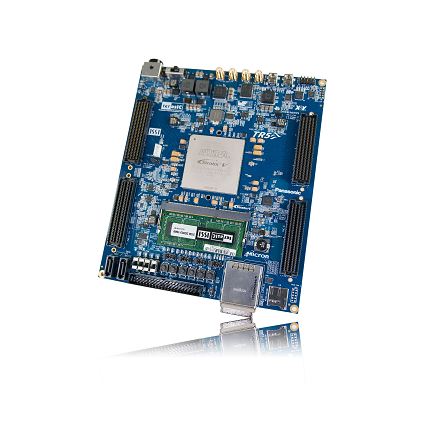

Terasic TR5 FPGA开发套件

1. FPGA Device
    622K Logic Elements (LEs)
    57.16 Mbits Memory
    256 Variable-precision DSP Blocks
    512 18x18-bit Multipliers Blocks
    28 Fractional PLLs and 4DLLs
    *FPGAs with higher LEs are also available. Please contact Terasic sales team.
2. FPGA Configuration
    MAX II CPLD EPM2210 System Controller for Fast Passive Parallel (FPP x16) Configuration
    On-board USB-Blaster II for use with Quartus II Programmer
3. Memory
    128MB Flash with a 16-bit Data Bus
    2MB SSRAM (1M x 16)
4. DDR3 SO-DIMM Socket
    Up to 8GB Capacity
    Maximum Clock Rate at 933 MHz
5. On-board Clocks
    50 MHz Fixed Oscillator
    CDCM6208 Programmable PLL
    LMK04906B Programmable PLL
6. SMA Connectors
    SMA Connector Pair for Differential Clock Input and Output
7. Buttons, Switches and LEDs
    4 User-controllable LEDs
    4 Buttons for User-defined Inputs
    4 Slide Switches for User-defined Inputs
8. Mini PCI Express Gen 2x4 Connector
    Support PCI Express Gen2 x4 (5.0Gbps/lanes)
    High-speed Transceiver Channels up to 5 Gbps
    Support Downstream Mode
9. Two Serial ATA Ports
     SATA 3.0 Standard at 6Gbps Signaling Rate
10. Four FPGA Mezzanine Card (FMC) Connectors
    2 HPC (high-pin count) FMC connectors up to 172 x2  Single-end I/O, 2 LPC (low-pin count) FMC connectors up to 76 x2 Single-end I/O
    10 Transceiver Channels for each HPC FMC connector and 1Transceiver Channel for LPC each HPC FMC connector
    FMC VITA 57.1 Compliant
    Adjustable VADJ : 1.2V/1.5V/1.8V/2.5V/3.0V.
11. One 40-pin Expansion Header
        36 FPGA I/O pins; 4 power and ground lines
        I/O standards: 3.3V
12. Power
    DC 12V Input
13. Kit contents
    TR5 FPGA Development Kit
    Type A to Mini-B USB Cable
    Fan (Installed)
    2GB DDR3-1600 SO-DIMM Module (Installed)
    12V DC Power Supply
    AC Power Cord
    FMC Loopback Card
    Screws, Copper Stands, and Silicon Footstands
