Terasic VEEK-MT-C5SoC主板

SoC Embedded Design Suite Subscription Edition
    ARM Development Studio 5 (DS-5™) Altera Edition Toolkit
    Hardware-to-software handoff tools
    Linux run-time software for application development
    SoC hardware libraries for firmware development
    Application example
Cyclone V SX SoC—5CSXFC6D6F31C6N (SoC)
    110K LEs, 41509 ALMs
    5140 M10K memory blocks
    224 18x18 Multiplier
    6 FPGA PLLs and 3 HPS PLLs
Configuration Device and USB Blaster Circuit
    Active Serial (AS) x1 or x4 configuration (EPCQ256SI16N)
    MAX® V CPLD (5M2210ZF256I5N) in a 256-pin FBGA package as the System Controller
    Flash fast passive parallel (FPP) configuration
    MAX II CPLD (EPM570GM100) as part of the embedded USB-BlasterTM II for use with the Quartus® II Programmer
Memory Devices
    One 1,024-Mbyte (MB) HPS DDR3 SDRAM with error correction code (ECC) support
    One 1,024-MB FPGA DDR3 SDRAM
    One 256-Megabit (Mb) quad serial peripheral interface (QSPI) flash
    One 512-Mb CFI flash
    One 32-Kb I2C serial electrically erasable PROM (EEPROM)
    One Micro SD flash memory card
Switches and Indicators
    LEDs and displays
        Eight user LEDs
        One configuration load LED
        One configuration done LED
        One error LED
        Three configuration select LEDs
        Four on-board USB-Blaster II status LEDs
        One HSMC interface LED
        Two UART data transmit and receive LEDs
        One power on LED
        One two-line character LCD display
    Push buttons
        One CPU reset push button
        One MAX V reset push button
        One program select push button
        One program configuration push button
        Six general user push buttons
    DIP switches
        One MAX V CPLD System Controller control switch
        One JTAG chain control DIP switch
        One mode select DIP switch
        One general user DIP switch
On-board Clocking Circuitry
    Si570, Si571, and Si5338 programmable oscillators
    25-MHz, 50-MHz,100-MHz, 125-MHz, 148.50-MHz, and 156.25-MHz oscillators
    SMA input (LVCMOS)
Communication Ports
    One PCI Express x4 Gen1 socket
    One universal HSMC port
    One USB 2.0 on-the-go (OTG) port
    One Gigabit Ethernet port
    Dual 10/100 Ethernet ports
    One SDI port (option for SMA connection)
    One controller area network (CAN) port
    One RS-232 UART (through the mini-USB port)
    One real-time clock
    14–20-V (laptop) DC input
Capacitive LCD Touch Screen
    Equipped with an 7-inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) module
    Module composed of LED backlight
    Support 24-bit parallel RGB interface
    Converting the X/Y coordination of touch point to its corresponding digital data via the Touch controller
5-Megapixel Digital Image Sensor
    Superior low-light performance
    High frame rate
    Global reset release, which starts the exposure of all rows simultaneously
    Bulb exposure mode, for arbitrary exposure times
    Snapshot-mode to take frames on demand
    Horizontal and vertical mirror image
    Column and row skip modes to reduce image size without reducing field-of-view
    Column and row binning modes to improve image quality when resizing
    Simple two-wire serial interface
    Programmable controls: gain, frame rate, frame size, exposure
Digital Accelerometer
    Up to 13-bit resolution at +/- 16g
    SPI (3- and 4-wire) digital interface
    Flexible interrupts modes
Ambient Light Sensor
    Approximates human-eye response
    Precise luminance measurement under diverse lighting conditions
    Programmable interrupt function with user-defined upper and lower threshold settings
    16-bit digital output with I2C fast-mode at 400 kHz
    Programmable analog gain and integration time
    50/60-Hz lighting ripple rejection

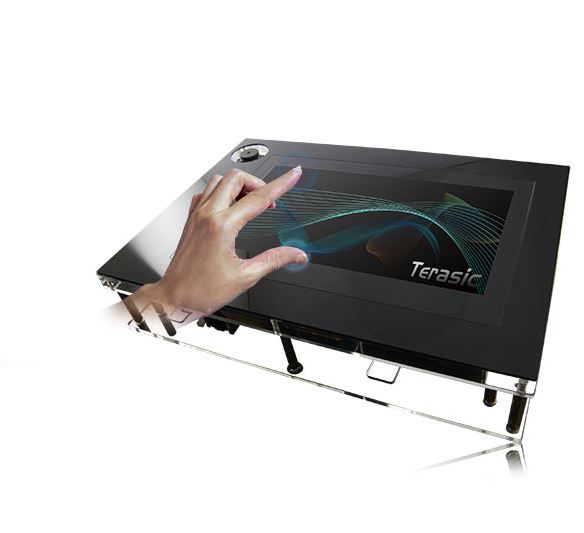

The Video and Embedded Evaluation Kit - Multi-touch on Cyclone® V SoC Development Board (VEEK-MT-C5SoC) is a comprehensive design environment with everything embedded developers need to create processing-based systems. VEEK-MT-C5SoC delivers an integrated platform that includes hardware, design tools, intellectual property (IP) and reference designs for developing embedded software and hardware platform in a wide range of applications. The fully integrated kit allows developers to rapidly customize their processor and IP to best suit their specific application. The VEEK-MT-C5SoC features the Altera Cyclone® V SoC development board targeting the Altera Cyclone® V SX SoC FPGA, as well as a capacitive LCD multimedia color touch panel which natively supports multi-touch gestures. A 5-megapixel digital image sensor, ambient light sensor, and 3-axis accelerometer make up the rich feature-set.

The all-in-one embedded solution offered on the VEEK-MT-C5SoC, in combination of the LCD touch panel and digital image module, provides embedded developers the ideal platform for multimedia applications with unparallel processing performance. Developers can benefit from the use of FPGA-based embedded processing system such as mitigating design risk and obsolescence, design reuse, reducing bill of material (BOM) costs by integrating powerful graphics engines within the FPGA, and lower cost.
