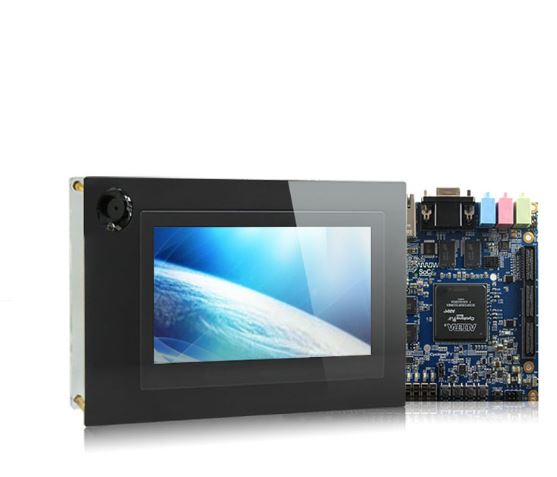

Terasic VEEK-MT-SoC 套件

FPGA Device
    Cyclone V SoC 5CSXFC6D6F31 Device
    Dual-core ARM Cortex-A9 (HPS)
    110K Programmable Logic Elements
    5,140 Kbits embedded memory
    6 Fractional PLLs
    2 Hard Memory Controllers
    3.125G Transceivers
Configuration and Debug
    Quad Serial Configuration device – EPCQ256 on FPGA
    On-Board USB Blaster II (micro USB type B connector)
Memory Device
    1GB (2x256MBx16) DDR3 SDRAM on FPGA
    1GB (2x256MBx16) DDR3 SDRAM on HPS
    128MB QSPI Flash on HPS
     Micro SD Card Socket on HPS
    USB 2.0 OTG (ULPI interface with micro USB type AB connector)
    USB to UART (micro USB type B connector)
    10/100/1000 Ethernet
    One HSMC (8-channel Transceivers, Configurable I/O standards 1.5/1.8/2.5/3.3V)
    One LTC connector (One Serial Peripheral Interface (SPI) Master ,one I2C and one GPIO interface )
    24-bit VGA DAC
    128x64 dots LCD Module with Backlight
    24-bit CODEC, Line-in, line-out, and microphone-in jacks
Switches, Buttons and LEDs
    8 User Keys (FPGA x4 ; HPS x 4)
    8 User Switches (FPGA x4 ; HPS x 4)
    8 User LEDs (FPGA x4 ; HPS x 4)
    2 HPS Reset Buttons (HPS_RSET_n and HPS_WARM_RST_n)
    G-Sensor on HPS
    Temperature Sensor on FPGA
    12V DC input
Capacitive LCD Multi-touch Screen
    7-inch TFT LCD with pixel resolution of 800*480
    16 million colors (8-bit RGB)
    LED backlight
5-Megapixel Digital Image Sensor
    2,592H x 1,944V active pixels with Bayer color arrangement
    Programmable frame rate up to 70FPS (VGA)
    Snapshot-mode mode to take frames on demand
    Simple two-wire serial control interface
Digital Accelerometer
    Up to 13-bit resolution at +/- 16g
    SPI (3- and 4-wire) digital interface
    Flexible interrupts modes
Ambient Light Sensor
    Precise illumination measurement under diverse lighting conditions
    Programmable interrupts
    16-bit digital output with I2C fast-mode at 400 kHz
    Programmable analog gain and Integration time
    50/60Hz lighting ripple rejection



The Video and Embedded Evaluation Kit - Multi-touch for SoCKit (VEEK-MT-SoCKit) is a comprehensive design environment with everything embedded developers need to rapidly customize to best suit their specific application. VEEK-MT-SoCKit delivers an integrated platform that includes hardware, design tools, intellectual property (IP) and reference designs for developing embedded software and hardware platform in a wide range of applications.

The VEEK-MT-SoCKit features the SoCKit development board targeting the Cyclone V SoC FPGA, as well as a capacitive LCD multimedia color touch panel which natively supports multi-touch gestures. A 5-megapixel digital image sensor, ambient light sensor, and 3-axis digital accelerometer make up the rich feature-set. The all-in-one embedded solution offered on the VEEK-MT-SoCKit, in combination of the LCD touch panel and digital image module, provides embedded developers an ideal solution for multimedia applications with unparalleled processing performance.

This kit is also preconfigured with an FPGA hardware reference design including several ready-to-run demonstration applications stored on the provided SD card.
