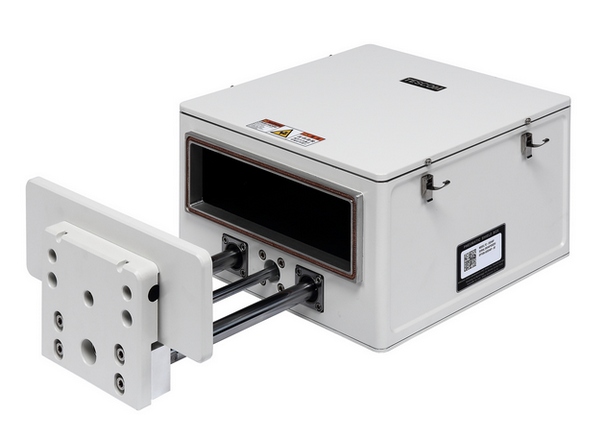

TESCOM TC-5924AP 气动屏蔽箱
制造商: Tescom Model: TC-5924AP 来源: Korea 保障: 12 Month - 报价要求
- 联系
◈ Mechanical Specifications
※ RF Connectors without I/O interface panel : two(2) N(f) outside and SMA(f) inside
※ Line voltage : 100 - 240 VAC, 50/60 Hz, 15 watt max.
※ Remote control : RS-232C, 3 wire, DB9(s)
※ Air connection
- Main connector : 6 mm OD hose, one-touch push-on fitting
- Input air pressure : 5 to 10 bar
※ Dimension
- Inside : 270(W) x 287(D) x 102(H) m
- Outside: 341(W) x 401(D) x 208(H) mm, door closed. 606(D) mm, door open
※ Weight : Approx.20 kg
※ Packing
- Size : 520(W) x 550(D) x 340(H) mm
- Weight : Approx.25kg
The size or weight of a package may vary on how to pack a package.
◈ Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectiveness (dB)
- 100 to 2000 MHz : > 80 dB
- 2000 to 3000 MHz : > 80 dB
- 3000 to 6000 MHz : > 70 dB
